2.5L TFSI DAZA & DNWA forged pistons & Steel connecting rod High Boost ULTI Kit JE & BAR-TEK®

Product number: 22rs308
Manufacturer: BAR-TEK®
JE & BAR-TEKu00ae Power kit
  • Extreme kit for extreme performance
  • for services from 1000 HP
  • BAR-TEKu00ae, JE, ACL, ARP
  • all the best in one kit

€3,549.95

Prices incl. VAT plus shipping costs

Delivery time 2 - 4 days

Your selection
Bore
icon/general/ico_circle_check-inner
Worldwide shipping
icon/general/ico_circle_check-inner
Shop safely
icon/general/ico_circle_check-inner
Certified Online Shop
icon/general/ico_circle_check-inner
Made for High-Boost
Quick Links
Rectangle Made in Germany
Description

This kit is made for you if you are really serious about increasing performance. Our ULTIMATE kit contains everything you need to make you and your engine happy: power up to 1000 hp with your 5 Evo cylinder engine!

Perfectly tuned: 2.5L TFSI ULTIMATE Kit for up to 1000 hp power for your DAZA and DNW

Whenever you think you can't go any further, think of this kit. Because here we have once again outdone ourselves. The ULTIMATE Kit is not called that for nothing! It gives you everything you need for the best performance from your 5 cylinder: a perfectly matched combination of forged pistons, connecting rods, connecting rod bolts, connecting rod bearings, head gasket and stud bolt.

Visually alone, this set can do it all: Our BAR-TEK® H-shaft steel connecting rods are titanium-rivetted, giving them a golden lustre. The matching high-performance pistons from JE Pistons are available as Ultra Series. All other parts are also of the highest quality: ARP connecting rod bolts, connecting rod bearings from ACL, MLS head gasket from Cometic and ARP stud bolt for the cylinder head.

That's really all you need. Not only do these components harmonise perfectly with each other, but you also save money as a set compared to buying them individually!

Extreme kit for extreme performance

Of course, our kit is not only an eye-catcher, but is also designed for extreme performance. Your 2.5L TFSI will be able to deliver up to 1000 hp without any worries! This is because we pack only the best components into our Ultimate Kit and they are optimally matched to each other.

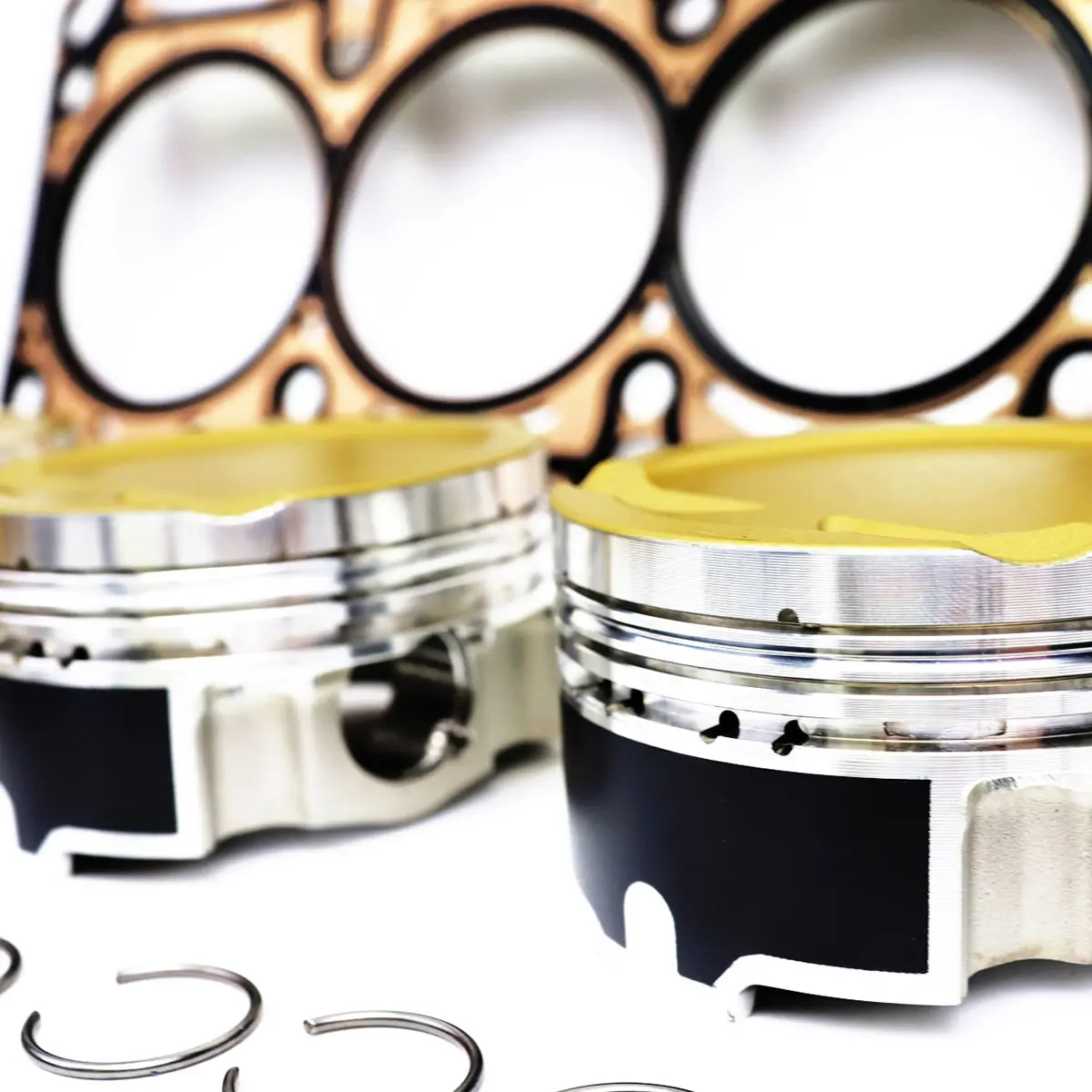

The JE Pistons- piston in this kit are specially coated for extreme performance and come with the High Boost piston pins. At the same time, they are still quite light. This combination is of course perfect for motorsport. The piston comes with everything you need for installation: pins, rings and clips.

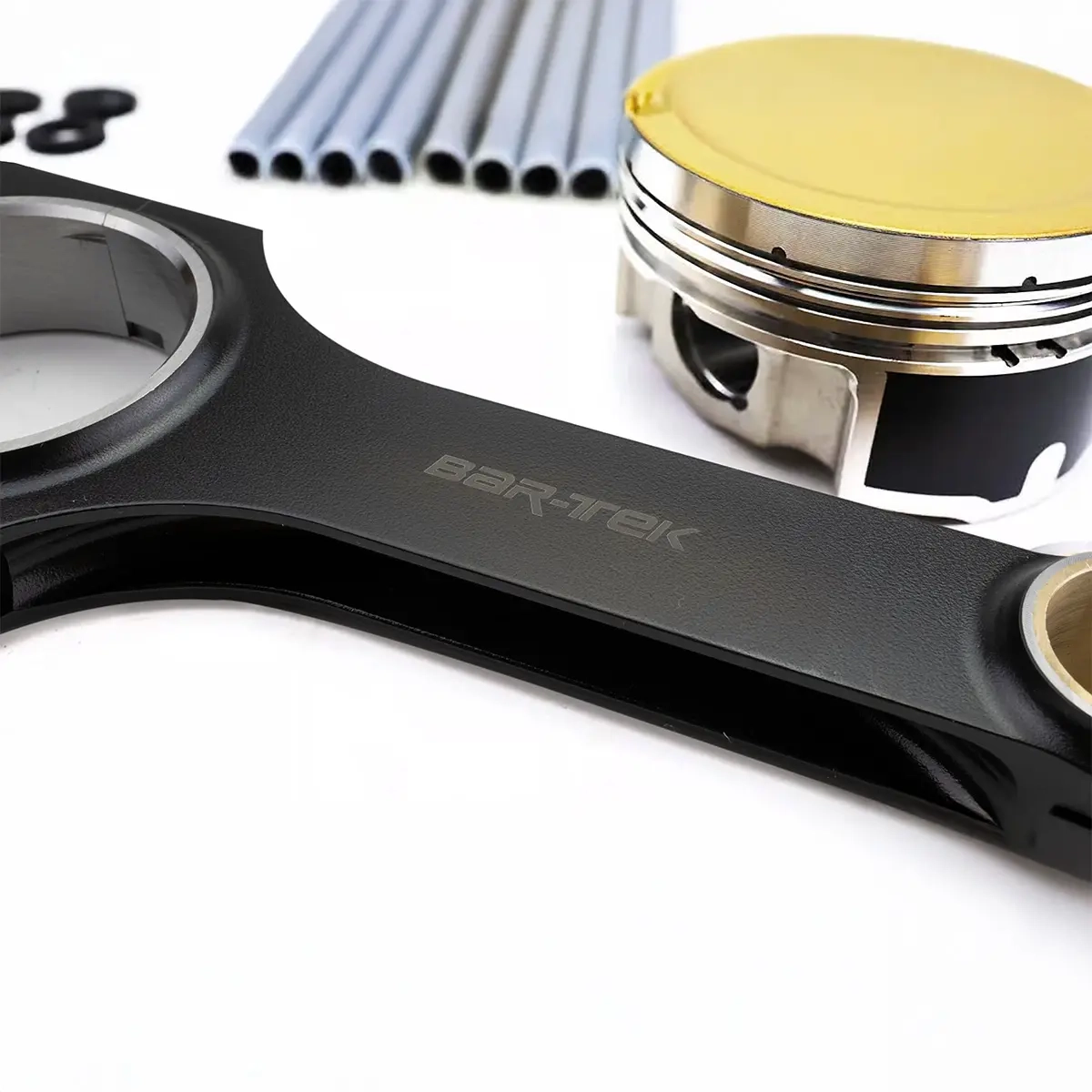

Our specially titanium-nitrided steel connecting rods are alsoextremely light and at the same time very stable. Thanks to their surface, they can easily withstand high pressure loads. They are milled from solid material and have an additional hole for better piston pin lubrication (rifle drilled). They also come with everything you need for assembly: the matching ARP2000 expansion bolts and assembly paste.

These two parts are the stars of the kit and are rounded off by high-performance bolts, racing bearings and more. As I said, more is simply not possible!

Features of the high performance piston:

  • Extremely light thanks to special alloy
  • Reinforced for maximum performance
  • for standard bore 82.50mm and also in 82.55mm if minimal honing is required
  • 22 mm piston pin
  • Installation and bore dimensions enclosed

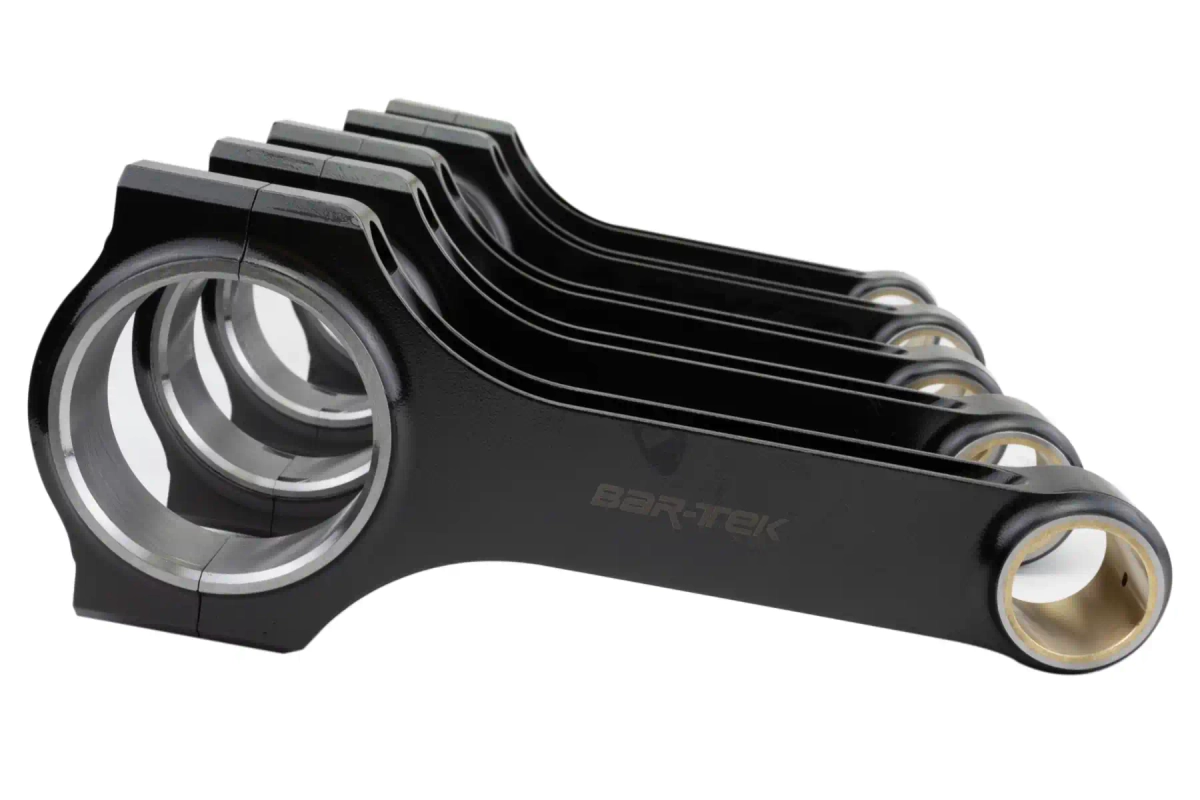

Features of the titanium-nitrided H-shaft conrods:

  • Titanium-nitrided
  • high-strength milled from solid material
  • suitable for extreme power increases of 1000 hp
  • extremely light and very stable
  • Magnaflux inspected
  • 5 pieces per set
  • Dimensions: 144 x 22 mm
  • Weight per conrods with screws only approx. 600 grams
  • With oil riser hole for piston pin lubrication (rifle drilled)
  • precisely angled and tested in-house
  • With 10x ARP 2000 expansion bolts 3/8"

Features of the ACL connecting rod bearings:

  • Racing bearings, ACL Race
  • extra coated
  • extra bore for the piston pin

Features of the APR stud bolt for the block and head:

  • A MUST for all engines that run with increased boost pressure!
  • The most important pins from the world market leader ARP.
  • The stud bolt are made from 8740 chromoly steel and have rounded threads.
  • Up to 40% stronger than standard bolts.
  • All ARP high performance stud kits include ARP paste.
  • Additional ARP screws for the bearing blocks

Features of the Cometic MLS head gasket

  • Multi-layer metal head gasket
  • Standard thickness for an optimum compression ratio of 9.5:1

Suitable for all 2.5L TFSI EA855Evo engines as installed in the RS3 8V and TTRS 8S and many more.

In any case, we recommend reinforcing the valve drive with our valve springs and Ferrea valves. You can find them further down at accesories.

Manufacturer

Information about the manufacturer

BAR-TEK®

BAR-TEK Motorsport GmbH

Im Rauschen Auel 3, 51491 Overath-Brombach, Germany

info@bar-tek.com

This set contains the following articles:
1
Forged piston kit JE for 2.5L TFSI Audi RS3 8V & TTRS 8S E855 DAZA & DNW
Article number: 21rs626.1
Product detail
1
2.5L TFSI Audi RS3 & TTRS H-Beam conrods 22 piston pin BAR-TEK®
Article number: 21rs491
Product detail
1
2.5 TFSI Audi RS3 & TTRS stud bolt cylinder head ARP
Article number: 21rs301.2
Product detail
1
2.5 TFSI Audi RS3 & TTRS Race conrod bearing shells ACL
Article number: 21rs329.1
Product detail
2.5L TFSI Audi TTRS & RS3 Metall Zylinderkopfdichtung
1
2.5L TFSI Audi RS3 & TTRS Metal Cylinder Head Gasket
Article number: 21rs317M.1
Product detail
1
2.5 TFSI Audi RS3 & TTRS stud bolt Block ARP & BAR-TEK®
Article number: 21rs303.1
Product detail
Do you have questions about the product? Just start the chat, we will help you with your product selection.
Fits for
Engine Engine code
2.5 TFSI (EA855 evo) DAZA | 400 hp (294 kW)
2.5 TFSI (EA855 evo) DNWA | 400 hp (294 kW)
Engine Engine code
2.5 TFSI (EA855 evo) DAZA | 400 hp (294 kW)
2.5 TFSI (EA855 evo) DNWA | 400 hp (294 kW)
Engine Engine code
2.5 TFSI (EA855 evo) DAZA | 400 hp (294 kW)
2.5 TFSI (EA855 evo) DNWA | 400 hp (294 kW)
Engine Engine code
2.5 TFSI (EA855 evo) DNWB | 390 PS (287 kW)
