MFD28 Gen 2 Universal 2.8" Display CANchecked
- Read out up to 50 values simultaneously
- CNC milled and black anodized aluminum bezel
- Popup function when exceeding or falling below values
- Description
- 2.8 inch capacitive touch display
- 8GB SD card memory
- Up to 10 freely configurable pages
- CNC milled and black anodized aluminium bezel
- Connection via Can-Bus and serial interface
- 4 analog inputs for 0 - 5V sensors (e.g. oil pressure, fuel pressure, exhaust gas temperature (with adapter) and boost pressure)

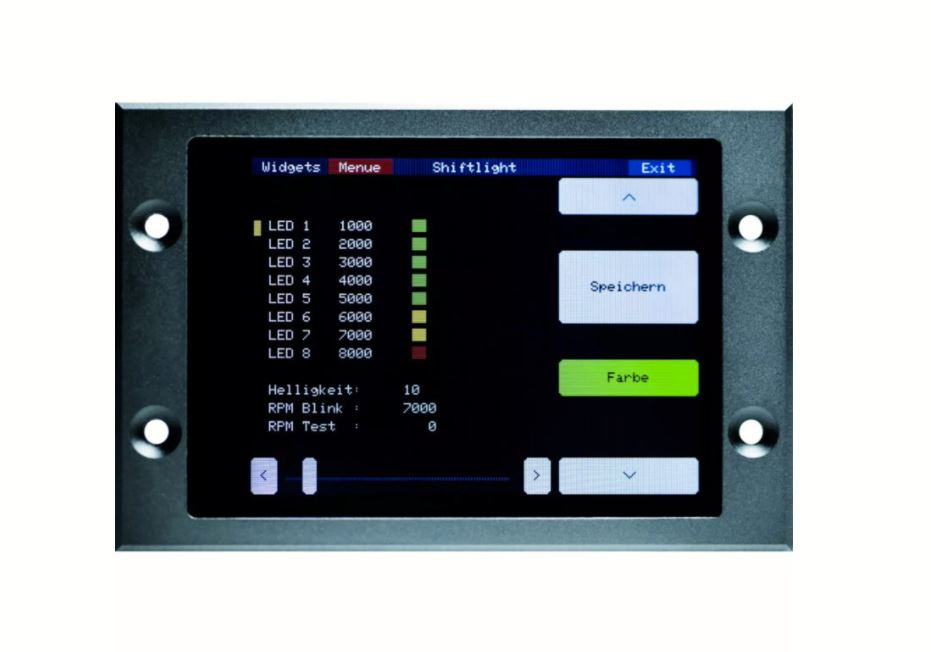

- Gear shift flash optional
- Performance meter (measure times e.g. 100-200 km/h)

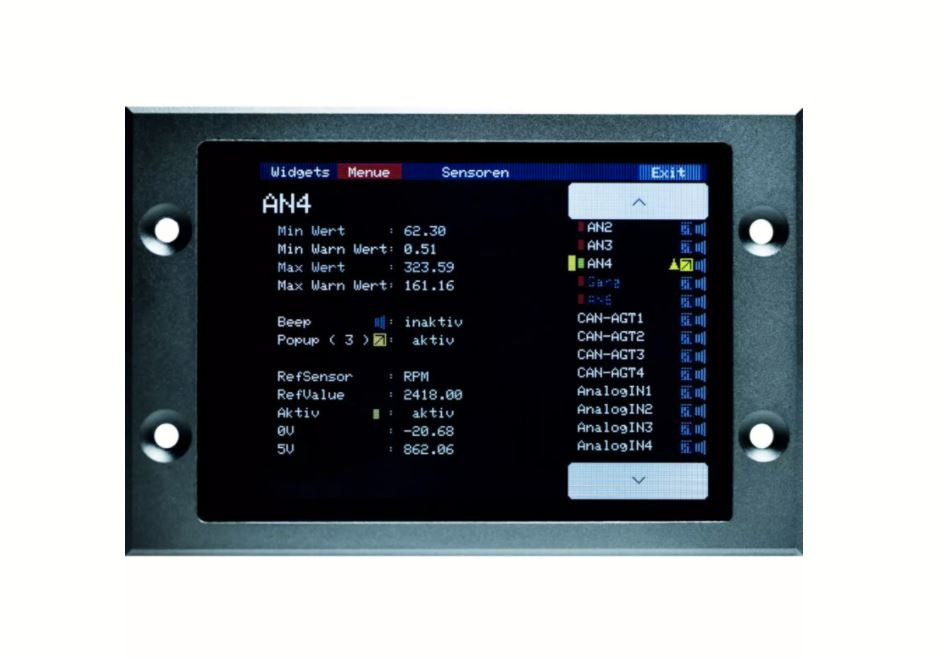

- Individual minimum and maximum warning values
- Popup function when exceeding or falling below values
- Screen brightness adjustable

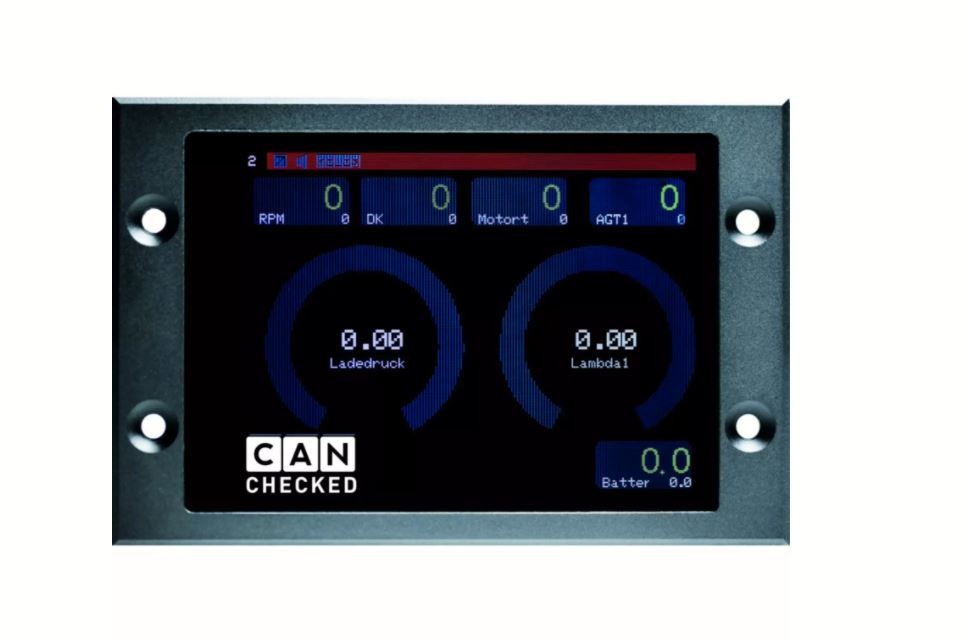

- 10 pages freely configurable
- up to 17 widgets per page

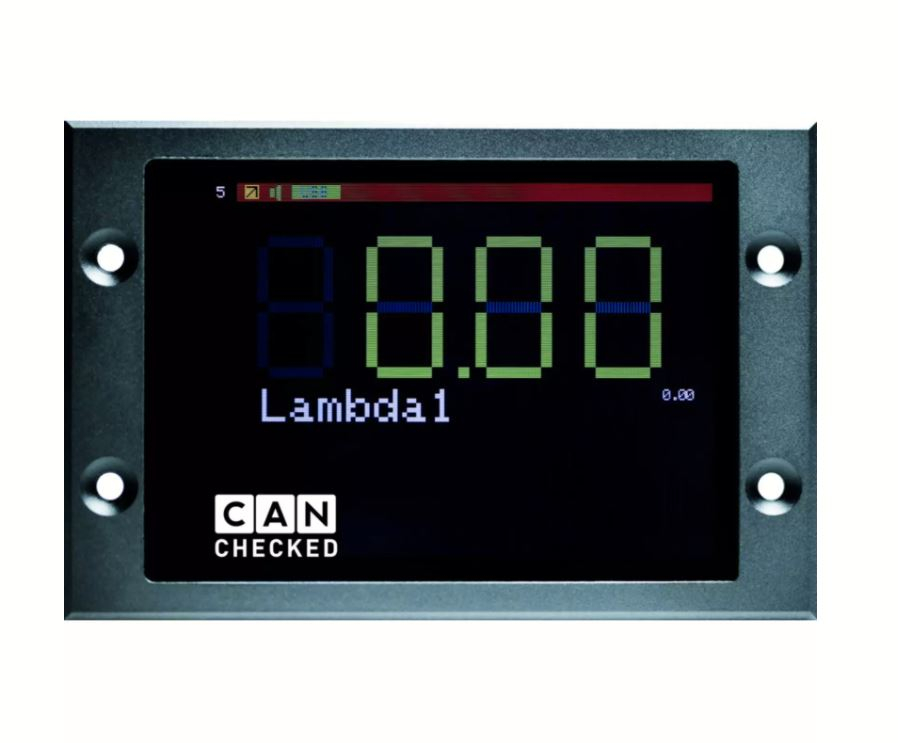

- 10 different widgets (digital number, bar, speed, single pointer, log, tableswitch, picture (from SD card), number, circle display, Haldex)
- Widgets can be moved and resized by drag'n'drop
- Depending on the widgets color customization possible
- Alternatively, the online configurator is available on the CANchecked website. Here the views can be created in advance and then copied to the SD card using the export function.
- Fits for
- Videos
- Questions about the product
- Reviews
- Blog Posts
- Accessories
- Cutsomers also bought
CANchecked MFD28 Gen 2, Universal 2.8" Display
The display can read and show up to 50 values simultaneously
Works with all CAN-Bus based ECUs and as a stand-alone display
The retrofit display shows up to 50 values and is suitable for all free programmable ECUs with Can-Bus and many with serial interface. The display can also be fed with 4 values from external sensors and OBD II. So it is also possible to use it as a stand alone multifunction display. In addition, it has an 8GB SD card for logging while driving. All of the 10 pages can be individually assigned with widgets by the customer.
Features:
Views:
Performance Meter:
Time measurement directly integrated in the display. 0-100; 0-200; 150-200, everything is possible. The time is measured via the speed signal from the control unit, optionally also combinable with a 10Hz GPS module.
Logging:
There are four different logging types available:
1. USB: logs live all sensor data via USB
2. SD card: all sensor data are logged to the SD card
3. Debug: all CAN bus data are logged via USB.
4. sDbg: all Can Bus data are stored on the SD card (CAN Bus Logger)
The logviewer is available online to evaluate the log. Simply load the log file and use the intuitive interface.
Supported ECUs:
In general, all ECUs are supported which have a documented CAN bus or a serial interface. The latter is only possible with optional serial adapters. Mostly the manufacturers deliver a "dbc" file, which is then converted into a .tri file for the display. This can also be done by the customer via the DBC converter on the manufacturer's website.
Thefollowing ECUs are already implemented:
trijekt (Premium, Bee, trigifant)
Megasquirt 2 and 3
AEM
MaxxECU
Ecumaster EMU (standard with CAN, standard with Can Bus Adapter, Black)
k-data KDFI
UMC1/UMC2
EFIgnition
Microsquirt
EcuMaster EMU (classic with Can-Bus Adapter: EMU Black)
AIM generic protocol
LinkECU
Haltech v2
MME ECU481 with Can Bus
SCS Delta GDI4 and Delta
VAG (Audi / VW / Seat)
Van kronenburg KMS MD35 (MP25 with CAN-Bus adapter)
VEMS with serial adapter
Haldex:
The 2.8" display has the ability to regulate the 4motion Haldex control (VAG Gen 1 PQ34 platform). The communication is done via Can-Bus, so no modification of the Haldex is necessary. The control is activated by a license.
Scope of delivery:
CANchecked 2.8 inch display
Cable set
Mounting screws
8 GB Micro-SD card
Micro-SD card adapter
Quickstart Guide
Installation instructions can also be found on the CANchecked website.
The display is configured via the website or via the Display Setup Software (found on the CANchecked website under the menu item DSS). The dbc-converter for the Can Bus protocol and the online configurator for the widgets, the latter can also be set via touch....
The temperature range of the display is -10°C to 70°C.
12V are required as power supply, optionally 5V or 24V are also possible.

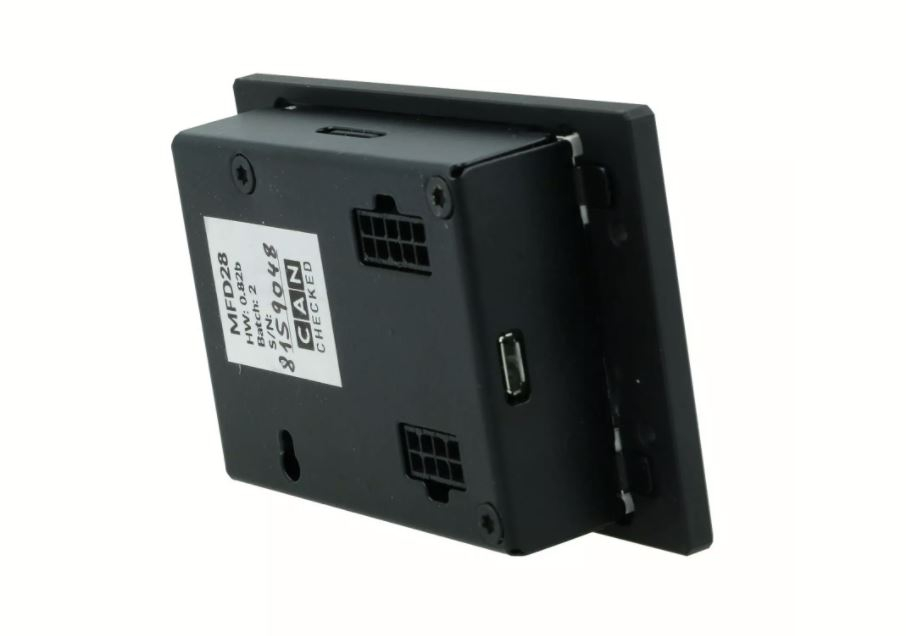

Dimensions
- opening 73 x 54,4 mm
- bezel 87,5 x 58 mm
- depth 29 mm
Accessories
