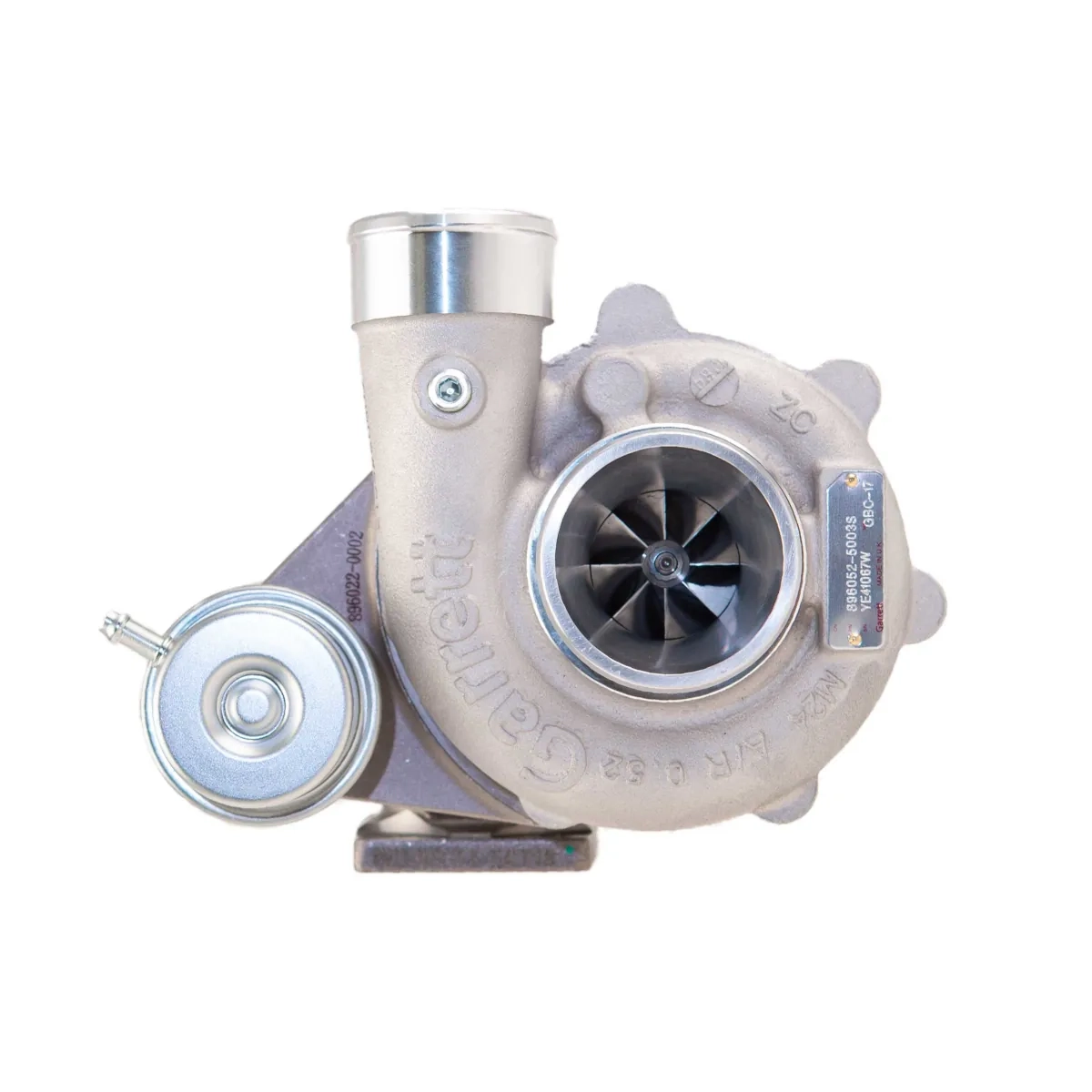

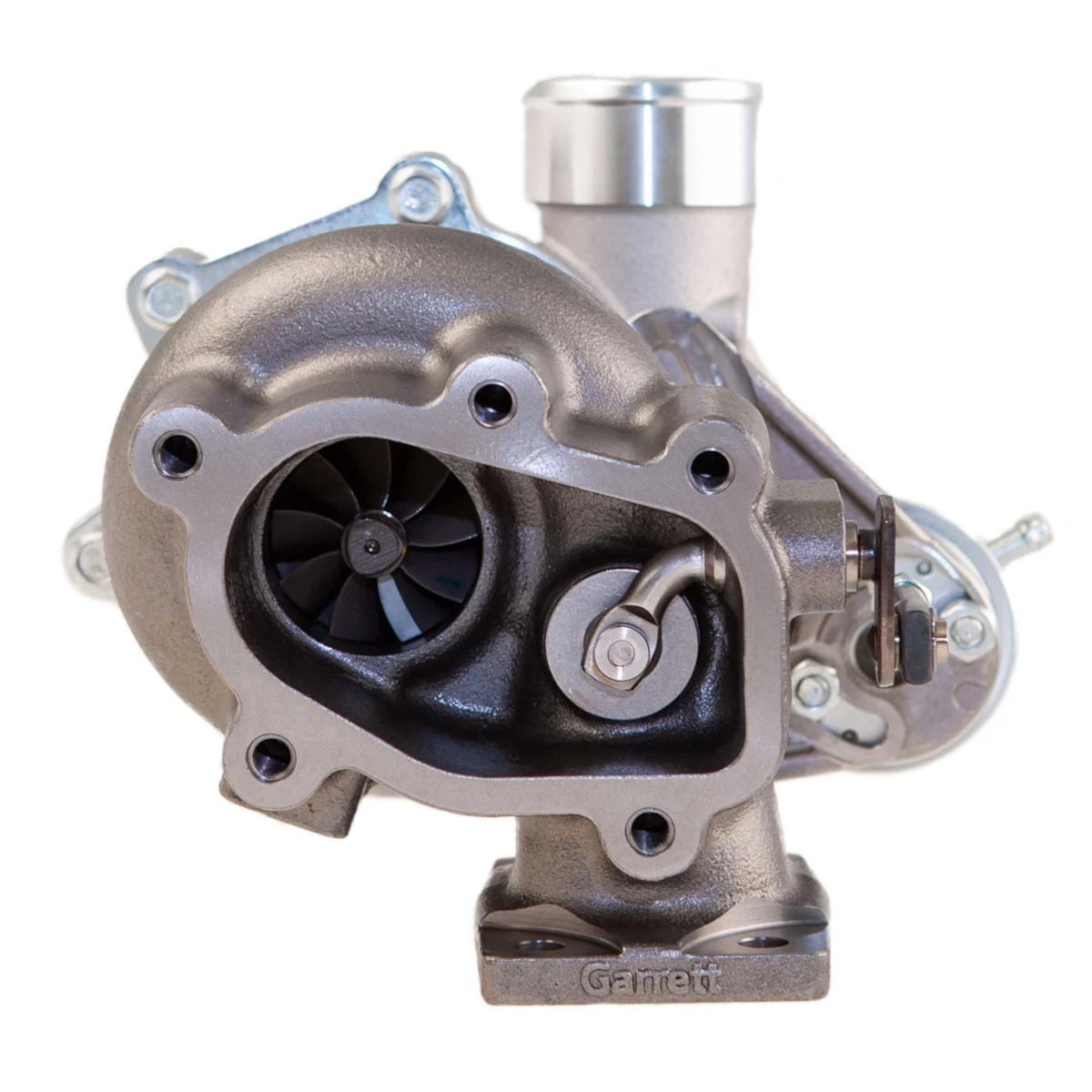

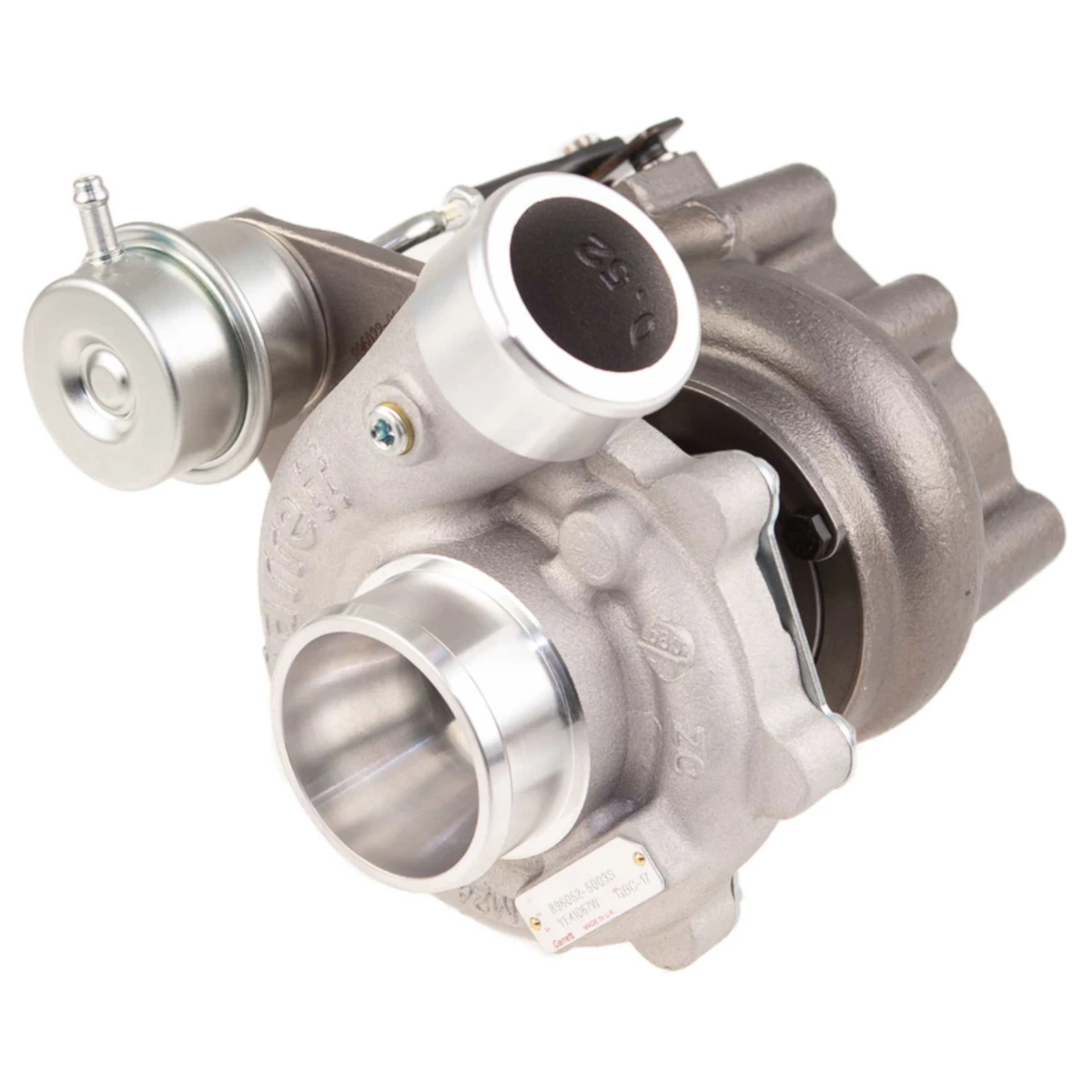

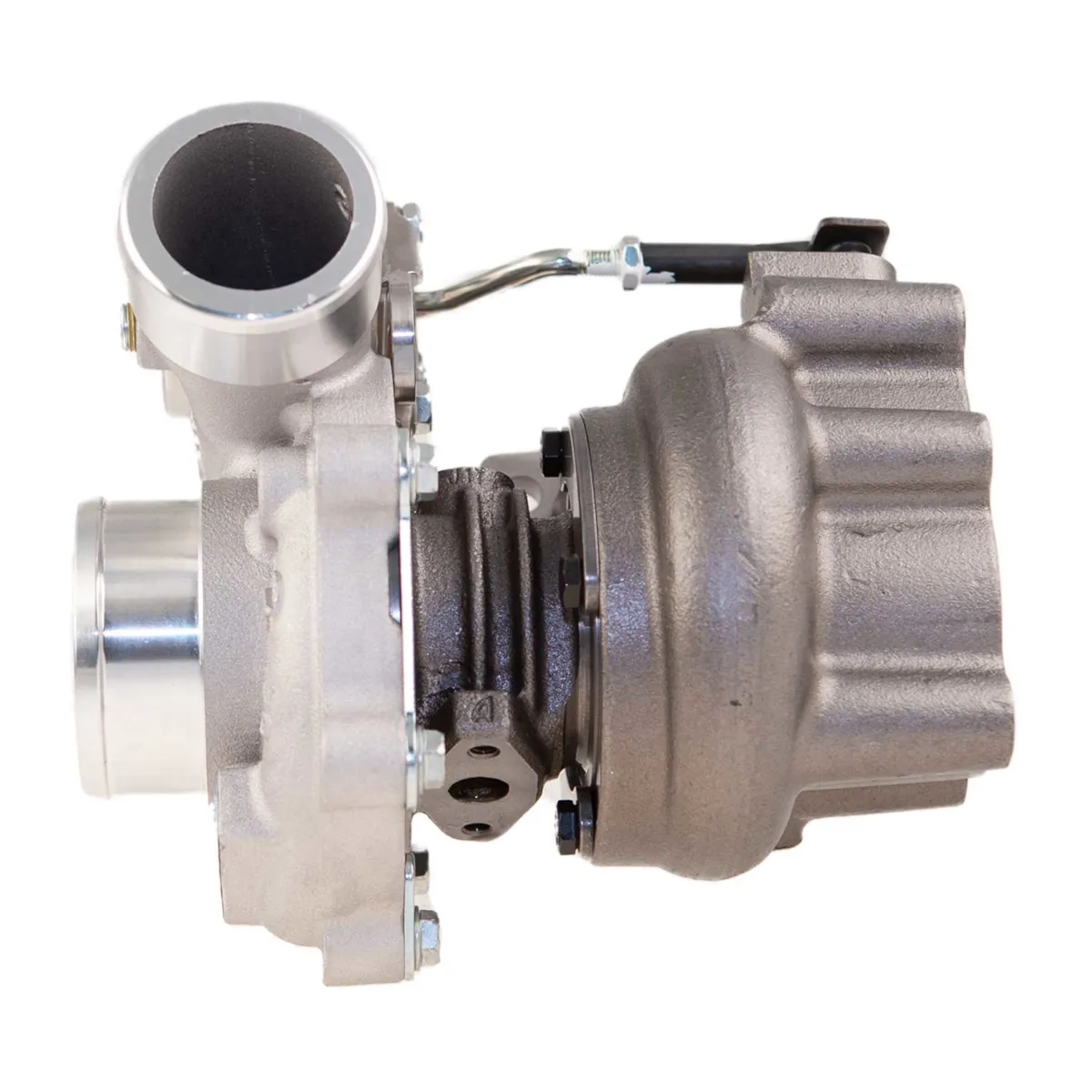

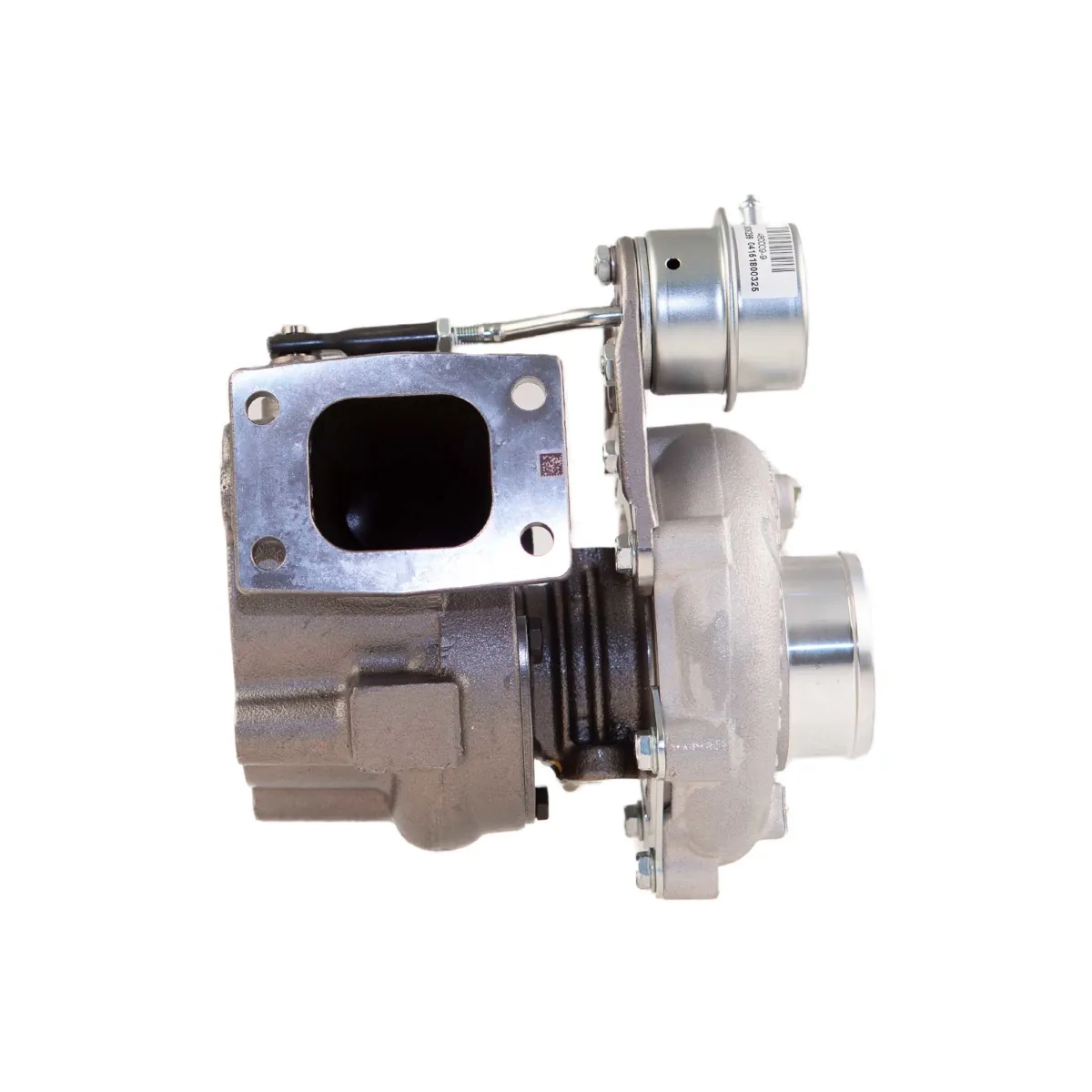

Garrett GBC17-250 Turbocharger 0.50 A/R IWG

Product number: 896052-5003S
Manufacturer: Garrett
Garrett Turbocharger
  • up to 250 HP
  • Standard Rotation
  • Internal Wastegate

€719.55

Prices incl. VAT plus shipping costs

Low stock levels

Immediate delivery!

icon/general/ico_circle_check-inner
Worldwide shipping
icon/general/ico_circle_check-inner
Shop safely
icon/general/ico_circle_check-inner
Certified Online Shop
icon/general/ico_circle_check-inner
Made for High-Boost
Quick Links
Group 2 Torque Settings
Group 2 Installation Instructions
Group 6 Authorized Dealer
Description

Power Rating: 150 - 250 HP
Displacement: 0.6 - 1.5 L

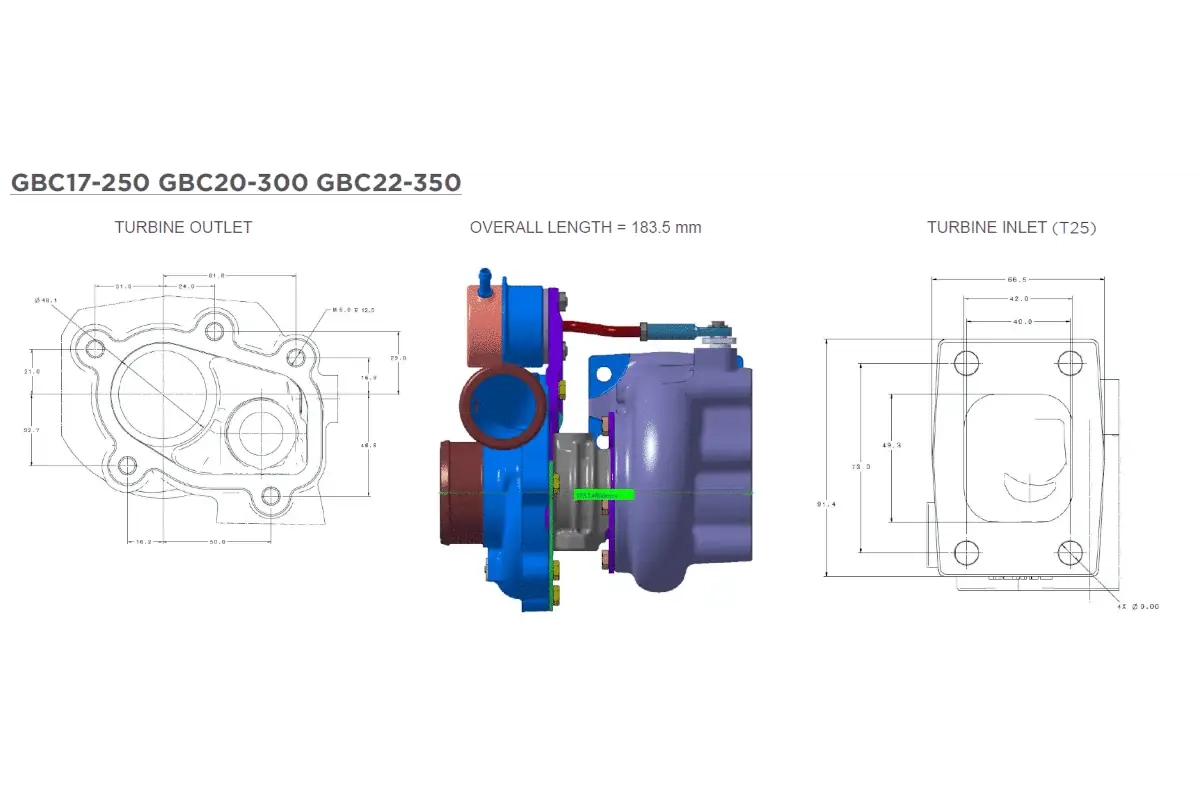

T25 Inlet - 5-Bolt Outlet - Single Scroll - Internal Wastegate - A/R 0.50

Garrett GBC-Series - The new Boost-Club-Line Turbocharger!

The GBC-Series was developed for engines with small to medium displacement. These turbochargers are small, efficient and have an integrated wastegatevalve. The turbochargers cover a power range from 140 to 350 HP, ideal for engines with 0.4 to 2.5 L displacement.

Features:

  • Latest CFD-optimised, milled and forged high-performance impeller
  • Rotation: Standard
  • Journal bearing
  • 360° thrust bearing
  • Ductile iron (SiMo+) turbine housing material
  • Inconel turbine wheel material
  • Oil cooled center housing
  • Internal Wastegate incl. 0.5 bar Actuator

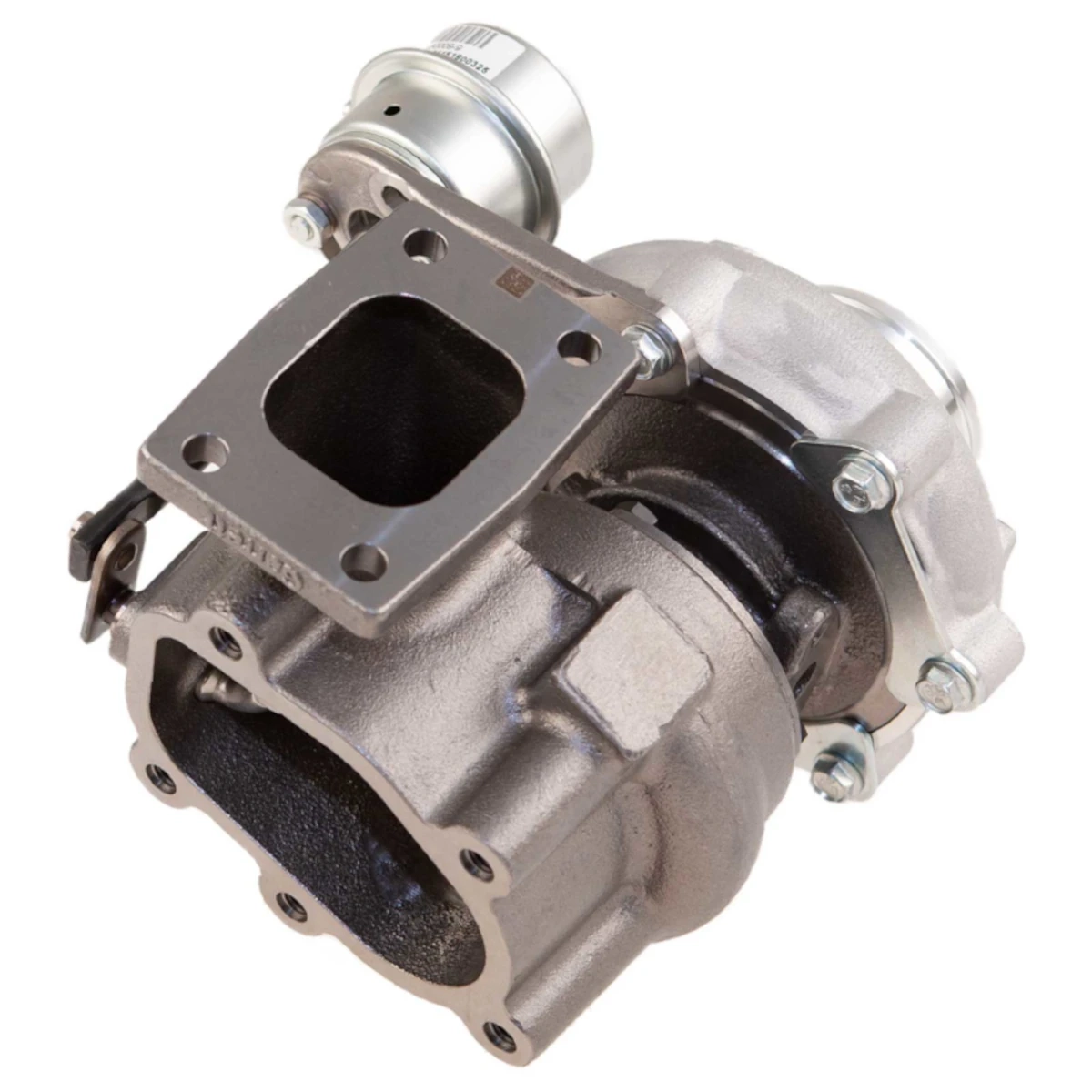

  • Turbine housing: T25 Inlet, 5-Bolt Outlet
  • V-Band mount on turbine housing for CHRA
  • Compressor side: Inducer Ø 36mm / Exducer Ø 49mm
  • Turbine side: Inducer Ø 44mm / Exducer Ø 40mm
  • Delivery: Turbocharger

Buy from us, the only Garrett Performance distributor in Germany! Your best choice for quality and service for over 30 years!
