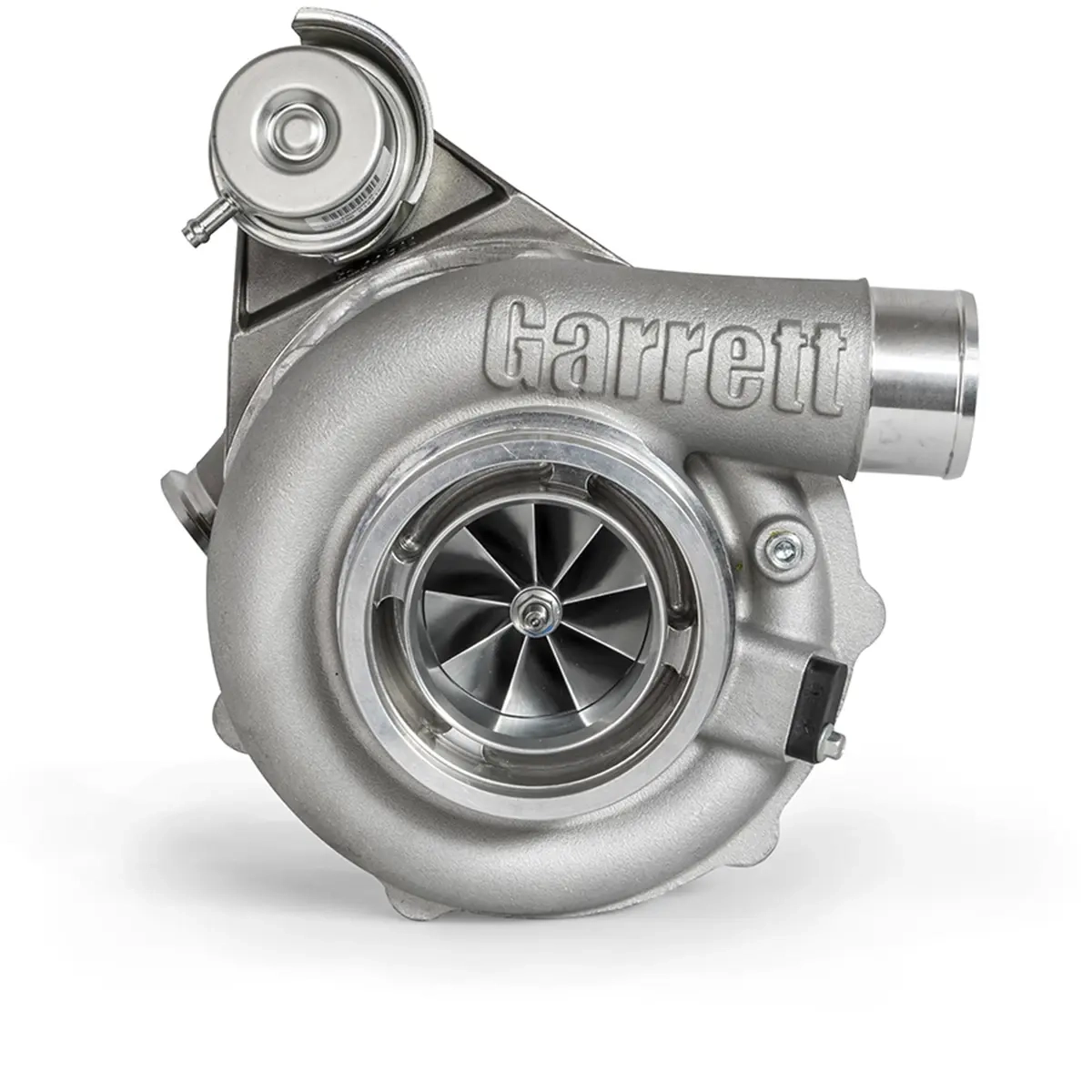

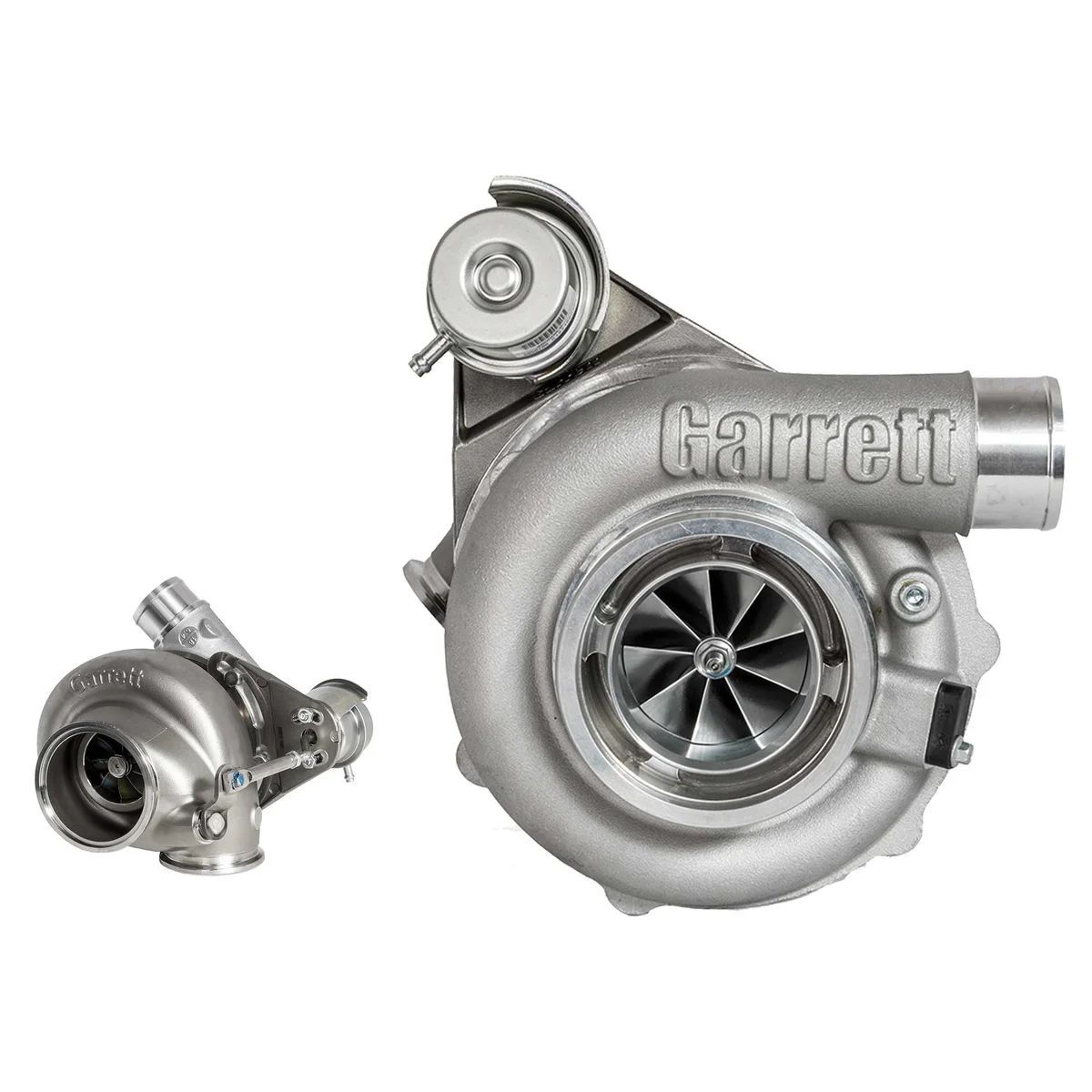

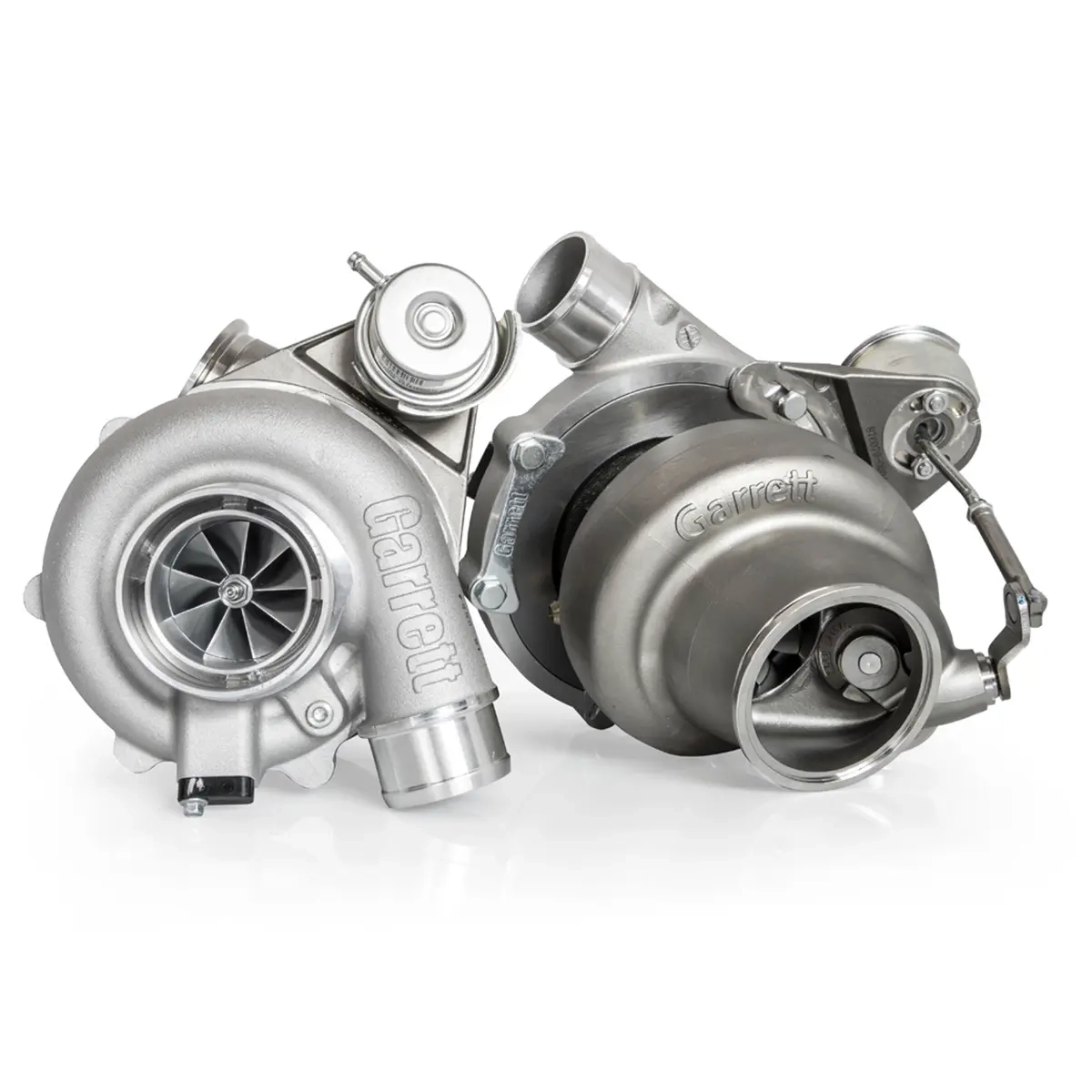

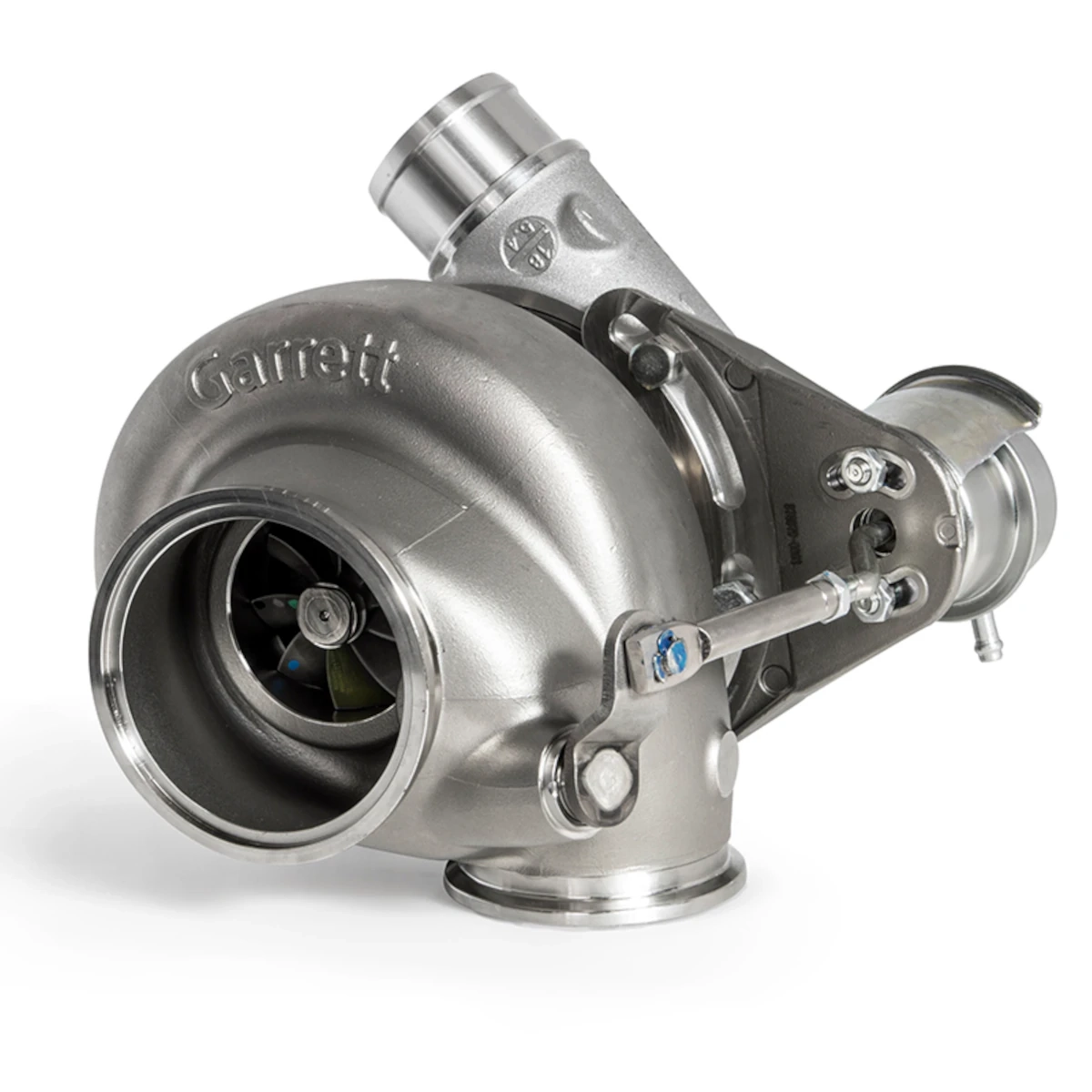

Garrett G30-900 Turbocharger 880704-5009S

Product number: 880704-5009S
Manufacturer: Garrett
Garrett Turbocharger
  • up to 900 HP
  • Standard Rotation
  • Ball bearing
  • Compressor wheel Ø 62mm

€2,490.93

Prices incl. VAT plus shipping costs

Delivery 5 to 8 days

icon/general/ico_circle_check-inner
Worldwide shipping
icon/general/ico_circle_check-inner
Shop safely
icon/general/ico_circle_check-inner
Certified Online Shop
icon/general/ico_circle_check-inner
Made for High-Boost
Quick Links
Group 2 Flange Diagram
Group 6 Authorized Dealer
Description

Power Rating: 550-900 HP
Displacement: 2.0 - 3.5 L
V-Band Inlet - V-Band Outlet - Single Scroll - Internal Wastegate - A/R 1.01

Garrett G-Series - The newest and most advanced generation turbocharger!

These very small turbochargers achive extremely high performance with minimum space requirements.

Features:

  • Latest CFD-optimised, forged milled compressor wheel
  • High-Flow compressor housing with integrated easy plug speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Includes -4AN oil restrictor fitting with 1mm orifice
  • Four large water jacket ports
  • Twin piston rings at compressor and turbine site
  • MAR-M 1050°C Turbine wheel
  • Water- and Oil cooled
  • Internal Wastegate
  • Turbine Housing: V-Band Inlet, V-Band Outlet
  • Compressor side: Inducer Ø 62mm / Exducer Ø 76mm
  • Turbine side: Inducer Ø 60mm / Exducer Ø 55mm

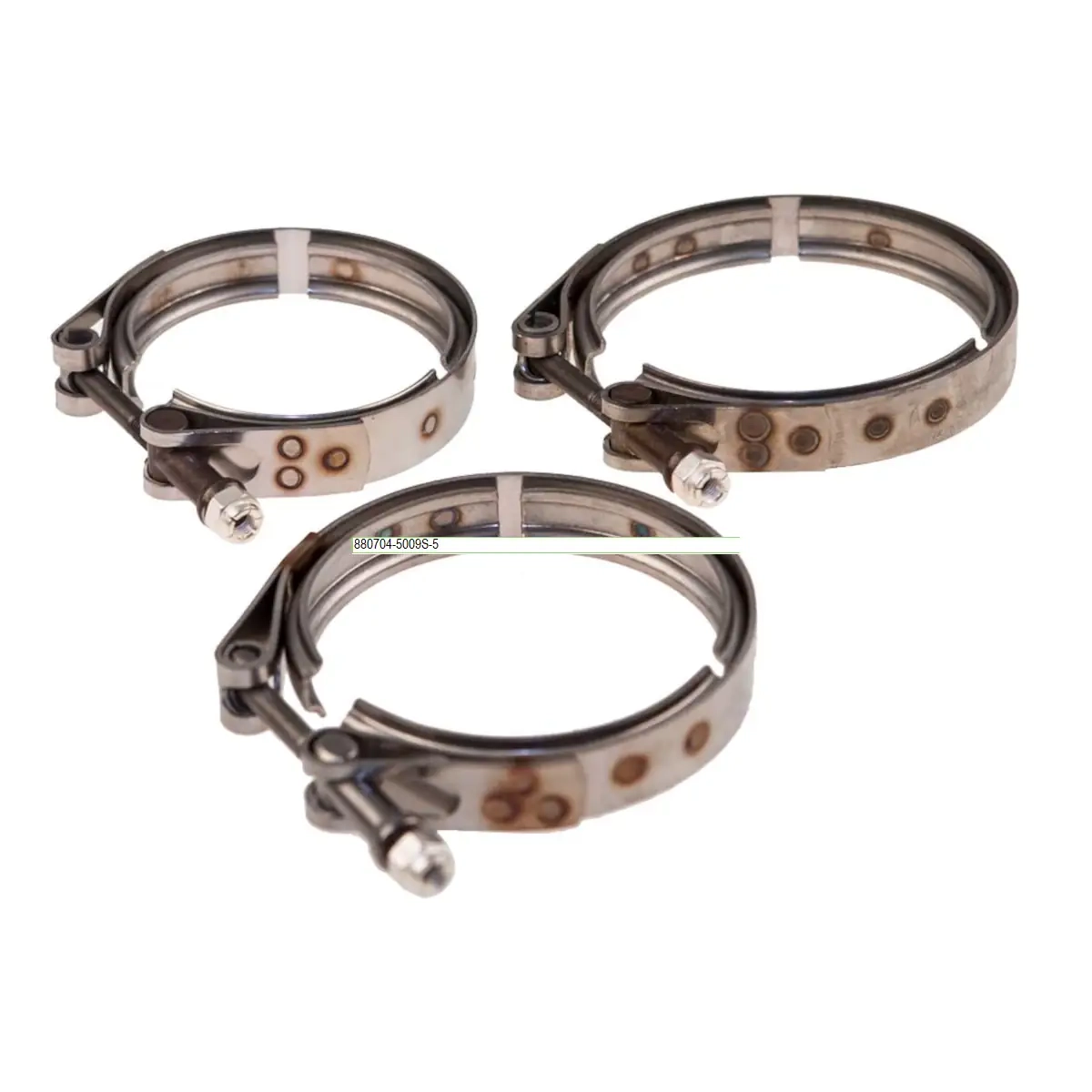

  • Delivery: Turbocharger, 0.5 bar Actuator, 2 x -6AN water fittings and two plugs, 1 x Oil restrictor -4AN

Buy from us, the only Garrett Performance distributor in Germany!Your best choice for quality and service for over 30 years!

Do you have questions about the product? Just start the chat, we will help you with your product selection.
