Catchtank Oil Drain System Dash 4 with Shut-Off Valve BAR-TEK®

Product number: 2100530
Manufacturer: BAR-TEK®
Oil drain system
  • black anodized aluminum
  • 90u00b0 thread adapter
  • 2x Dash Fittings
  • 1 meter PTFE steel braided Dash 4 line

€69.95

Prices incl. VAT plus shipping costs

Delivery 5 to 8 days

icon/general/ico_circle_check-inner
Worldwide shipping
icon/general/ico_circle_check-inner
Shop safely
icon/general/ico_circle_check-inner
Certified Online Shop
icon/general/ico_circle_check-inner
Made for High-Boost
Quick Links
Rectangle Made in Germany
Description

Universally applicable system for emptying catchtanks.

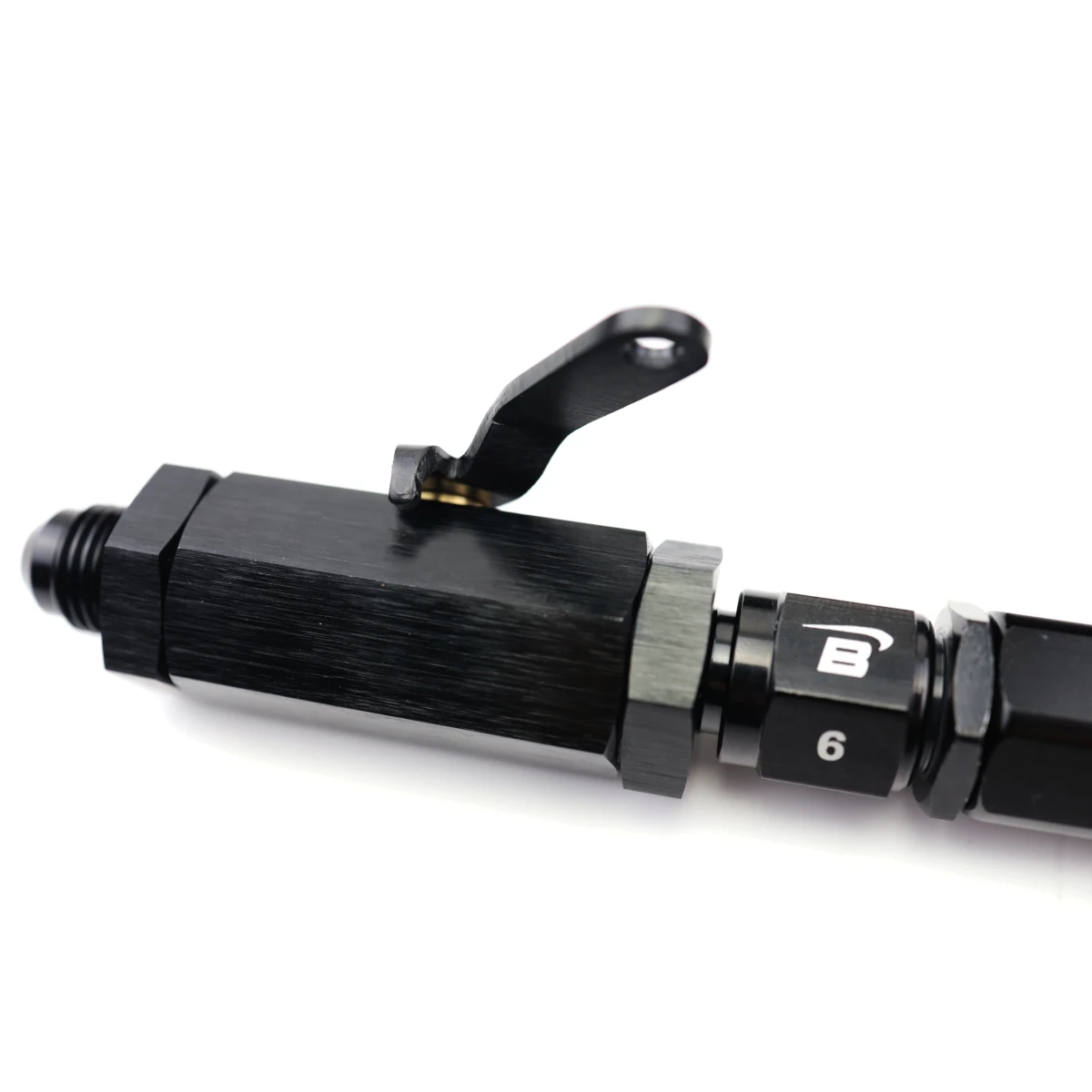

The aluminium shut-off valve eliminates the need to remove the catchtank. Thanks to the 1 meter long Dash 4 line it can be placed anywhere in the engine compartment and makes draining the collected liquids much easier.

Just put the cup underneath and turn it on.

  • black anodized aluminum
  • 90° thread adapter
  • 2x Dash Fittings
  • 1 meter PTFE steel braided Dash 4 line
  • Our fittings are marked with the size, so never again search for the right size

The aluminum fitting is reusable indefinitely.

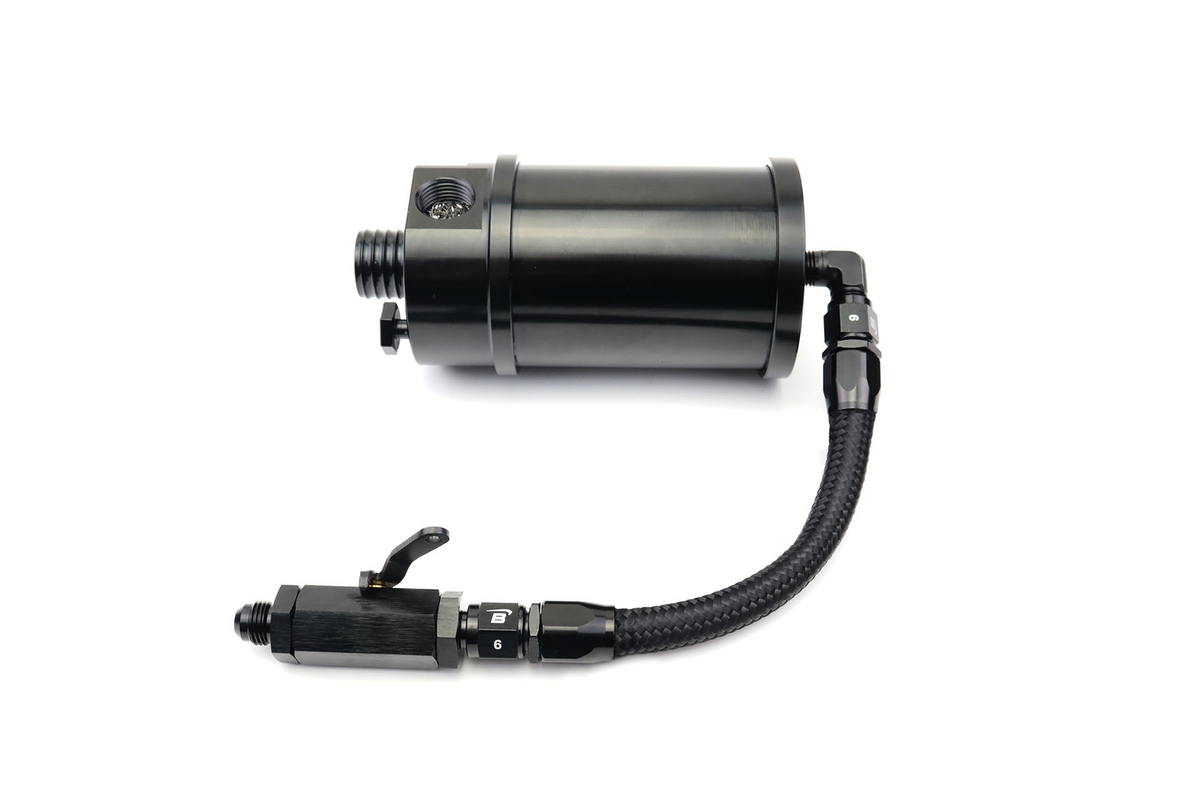

Catchtank is not included and is for illustration purposes only.

What are the dimensions of DASH fittings?

In the table below we give the thread dimensions, as well as the corresponding inner tube diameters. Small tolerances are possible with the hoses. For oil supply lines we recommend -4 AN with 6mm hose and for return lines at least -10AN with 16mm hose inner diameter. For Catchtank systems we recommend Dash 10

Dash (AN)
2
3
4
5
6
8
10
12
16
20
24
28
32



Thread (inch)
5/16x24
3/8x24
7/16x20
1/2x20
9/16x18
3/4x16
7/8x14
1-1/16x12
1-5/16
1-5/8x12
1-7/8x12
2-1/4x12
2-1/2x12



External thread inch/mm
0,3125 / 7,94
0,3750 / 9,50
0,4375 / 11,11
0,5000 / 12,70
0,5625 / 14,29
0,7500 / 19,05
0,8750 / 22,22
1,0625 / 26,99
1,3125 / 33,34
1,3125 / 33,34
1,8750 / 47,63
2,5000 / 63,50
2,5000 / 63,50



Internal thread inch/mm
0,2614 / 6,64
0,3299 / 8,38
0,3762 / 9,56
0,4387 / 11,14
0,4943 / 12,56
0,6733 / 17,10
0,7874 / 20,00
0,9603 / 24,39
1,2103 / 30,74
1,2103 / 30,74
1,7728 / 45,03
2,1489 / 54,58
2,3978 / 60,90



Tube inside
3,2mm
4,8mm
6,4mm
7,9mm
9,5mm
12,7mm
15,9mm
19,1mm
25,4mm
31,8mm
38,1mm
44,5mm
50,8mm
This set contains the following articles:
1
Steel Flex PTFE Line Dash/AN 4 BAR-TEK®
Article number: 2100471.1
Product detail
PTFE Fitting
2
PTFE fitting Dash/AN Straight BAR-TEK® ®
Article number: 2100467
Product detail
1
Shut-off valve Dash/AN BAR-TEK® ®
Article number: 2100529
Product detail
1
Nylon braided PTFE Teflon hose line Dash/AN BAR-TEK® ®
Article number: LSS-600-180-0008.1
Product detail
Do you have questions about the product? Just start the chat, we will help you with your product selection.
Fits for
This product is guaranteed to fit because it is universal in any vehicle!
