2.0L TSI EA888 Oil Cooler Kit V2 BAR-TEK®
Quick Links
Group 2
Rectangle Made in Germany
(2)

2.0L TSI EA888 Oil Cooler Kit V2 BAR-TEK®

Product number: 22tsi15
Manufacturer: BAR-TEK®
Oil cooler kit
  • Complete sealing and mounting material.
  • Complete kit
  • Prevents high oil temperatures

€319.29

Prices excl. VAT plus shipping costs

Immediate delivery!

icon/general/ico_circle_check-inner
Worldwide shipping
icon/general/ico_circle_check-inner
Shop safely
icon/general/ico_circle_check-inner
Certified Online Shop
icon/general/ico_circle_check-inner
Made for High-Boost
Quick Links
Rectangle Made in Germany
Description

BAR-TEK® Oil Cooler Kit V2 for 2.0L TSI EA888 1st and 2nd generation engine.

Newest oil cooler kit on the market for the 2.0L TSI engine developed by BAR-TEK®. With the V2, we have set ourselves the goal of developing an oil cooler that is very easy to install, but at the same time offers top performance. A must for optimum oil cooling in performance-enhanced 2.0L TSI vehicles.

The kit prevents oil temperatures that are too high, thus ensuring constant oil pressure and optimum oil consistency. This has a positive effect on the service life of the 2.0L TSI engine.

Dash 8 fittings and lines are used here. In this way, we ensure optimum flow, even for more demanding applications, e.g. on the race track.

BAR-TEK® complete kit:

  • 19 rows high performance oil cooler coated
  • BAR-TEK® Billet Oil Cooler Flange with Thermostat (approx.80°C) for Connection to Oil Filter Housing
  • Nylon sheathed high pressure lines with matching fittings and banjos
  • Universal mounting material

The kit not only impresses with its simple installation, but also has a constant oil temperature and oil pressure control due to its high workmanship.
The dash lines are protected from corrosion and environmental influences by a nylon coating.

You don't know where to find your engine code? Here you will find all information about the TSI engine!

Attention:

After the kit has been installed, there may be some noise, but this is harmless. The noise resembles a "whirring", which can come from the pulsation of the oil through the lines. We recommend using our special oil!



You can find detailed instructions on the correct dash fitting installation here:

Here is our video with all the information about an oil cooler:

This set contains the following articles:
1
Bolt for oilcooler plate BAR-TEK®
Article number: 4100007
Product detail
1
Mounting Parts for our Oilcooler BAR-TEK®
Article number: 4100008
Product detail
Ölfilter
1
Short Oilfilter BAR-TEK®
Article number: 2100011
Product detail
1

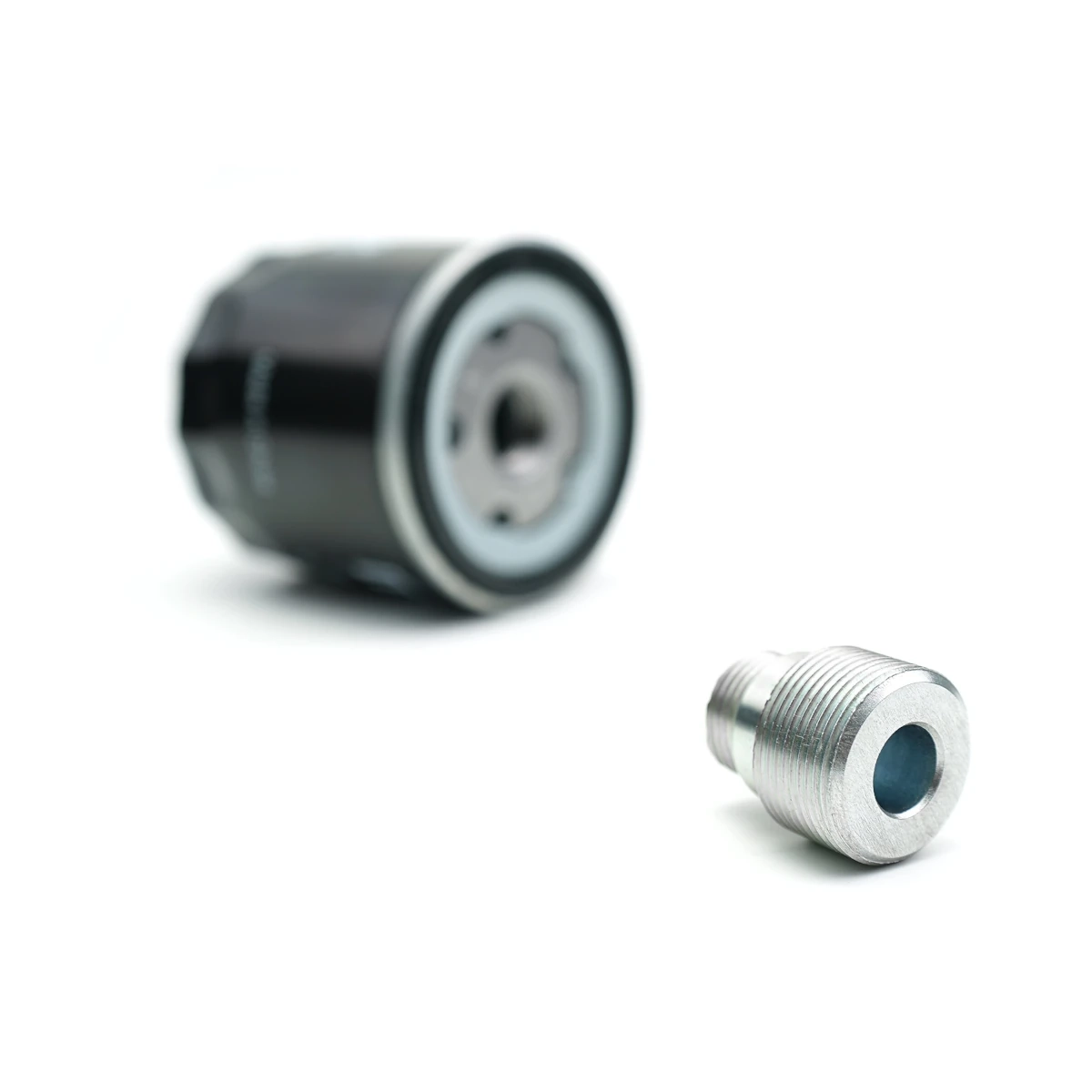

Oil cooler screw for thermostat flange EA888 oil cooler kit V2 BAR-TEK®
Article number: 21tsi143
Product detail
1
Oil pipes for oil cooler Dash/AN BAR-TEK®
Article number: 4100020
Product detail
1
Oil-cooler 19 rows
Article number: 21vr016
Product detail
1
Oil cooler flange with thermostat Dash 8 BAR-TEK®
Article number: 4100003
Product detail
Do you have questions about the product? Just start the chat, we will help you with your product selection.
Fits for
Engine Engine code
1.8 TFSI (EA888) BYT | 160 hp (118 kW)
1.8 TFSI (EA888) BZB | 160 hp (118 kW)
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
2.0 TFSI (EA888) CAWB | 200 hp (147 kW)
2.0 TFSI (EA888) CCZA | 200 hp (147 kW)
Engine Engine code
1.8 TFSI (EA888) CABB | 160 hp (118 kW)
1.8 TFSI (EA888) CDHB | 160 hp (118 kW)
2.0 TFSI (EA888 Gen. 3) CNCD | 225 hp (165 kW)
2.0 TFSI (EA888) CAEA | 180 hp (133 kW)
2.0 TFSI (EA888) CAEB | 211 hp (155 kW)
2.0 TFSI (EA888) CDNB | 180 hp (132 kW)
2.0 TFSI (EA888) CDNC | 211 hp (155 kW)
Engine Engine code
1.8 TFSI (EA888) CDHB | 160 hp (118 kW)
2.0 TFSI (EA888 Gen. 3) CAEA | 180 hp (133 kW)
2.0 TFSI (EA888 Gen. 3) CAEB | 211 hp (155 kW)
2.0 TFSI (EA888 Gen. 3) CDNB | 180 hp (132 kW)
2.0 TFSI (EA888 Gen. 3) CDNC | 211 hp (155 kW)
2.0 TFSI (EA888 Gen. 3) CNCD | 225 hp (165 kW)
Engine Engine code
Engine Engine code
2.0 TFSI (EA888) CDNB | 180 hp (132 kW)
2.0 TFSI (EA888) CESA | 211 hp (155 kW) - CA and USA
Engine Engine code
2.0 TFSI (EA888) CCTA | 200 hp (147 kW)
2.0 TFSI (EA888) CCZC | 170 hp (125 kW)
2.0 TFSI (EA888) CPSA | 211 hp (155 kW)
Engine Engine code
2.0 TFSI (EA888) CADA | 211 hp (155 kW)
2.0 TFSI (EA888) CAEB | 211 hp (155 kW)
2.0 TFSI (EA888) CDNB | 180 hp (132 kW)
2.0 TFSI (EA888) CDNC | 211 hp (155 kW)
2.0 TFSI (EA888) CNCD | 225 hp (165 kW)
2.0 TFSI (EA888) CPMA | 211 hp (155 kW)
Engine Engine code
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
2.0 TFSI (EA888) CCZA | 200 hp (147 kW)
2.0 TFSI (EA888) CESA | 211 hp (155 kW) - CA and USA
2.0 TFSI (EA888) CETA | 211 hp (155 kW)
Engine Engine code
1.8 TFSI (EA888) BYT | 160 hp (118 kW)
1.8 TFSI (EA888) BZB | 160 hp (118 kW)
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
Engine Engine code
Engine Engine code
1.8 TFSI (EA888) BZB | 160 hp (118 kW)
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
Engine Engine code
1.8 TFSI (EA888) BYT | 160 hp (118 kW)
1.8 TFSI (EA888) BZB | 160 hp (118 kW)
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
Engine Engine code
1.8 TFSI (EA888) BYJ | 160 hp (118 kW)
1.8 TFSI (EA888) BZB | 160 hp (118 kW)
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
2.0 TFSI (EA888) CAWB | 200 hp (147 kW)
2.0 TFSI (EA888) CCZA | 200 hp (147 kW)
Engine Engine code
1.8 TFSI (EA888) BZB | 160 hp (118 kW)
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
2.0 TFSI (EA888) CCZA | 200 hp (147 kW)
Engine Engine code
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
1.8 TFSI (EA888) CDHB | 160 hp (118 kW)
Engine Engine code
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
Engine Engine code
2.0 TFSI (EA888) CAWB | 200 hp (147 kW)
Engine Engine code
2.0 TFSI (EA888) CCZA | 200 hp (147 kW)
Engine Engine code
1.8 TFSI (EA888) BZB | 160 hp (118 kW)
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
2.0 TFSI (EA888) CAWB | 200 hp (147 kW)
2.0 TFSI (EA888) CCTA | 200 hp (147 kW)
Engine Engine code
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
Engine Engine code
1.8 TFSI (EA888) BZB | 160 hp (118 kW)
1.8 TFSI (EA888) CDAA | 160 hp (118 kW)
2.0 TFSI (EA888) CAWB | 200 hp (147 kW)
2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
Engine Engine code
2.0 TFSI (EA888 Gen. 3) CULA | 180 hp (132 kW)
2.0 TFSI (EA888) CAWB | 200 hp (147 kW)
2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
Engine Engine code
2.0 TFSI (EA888) CAWA | 170 hp (125 kW)
2.0 TFSI (EA888) CAWB | 200 hp (147 kW)
2.0 TFSI (EA888) CCTA | 200 hp (147 kW)
2.0 TFSI (EA888) CCZA | 200 hp (147 kW)
2.0 TFSI (EA888) CCZB | 211 hp (155 kW)
2.0 TFSI (EA888) CCZC | 170 hp (125 kW)
2.0 TFSI (EA888) CCZD | 180 hp (132 kW)
