2.0L TFSI EA113 RACE Oil cooling nozzle (Piston bottom cooling) for JE Pistons

Product number: 21tf182

Manufacturer: BAR-TEK®

BAR-TEK® Oil spray nozzles

A must for tuned engines!
Reduction of the combustion chamber temperature
Knocking of the engine is counteracted
Plug & Play

€199.95

Prices incl. VAT plus shipping costs

Immediate delivery!

Worldwide shipping

Shop safely

Certified Online Shop

Made for High-Boost

Pay in advance

Quick Links

Made in Germany

Description

Description

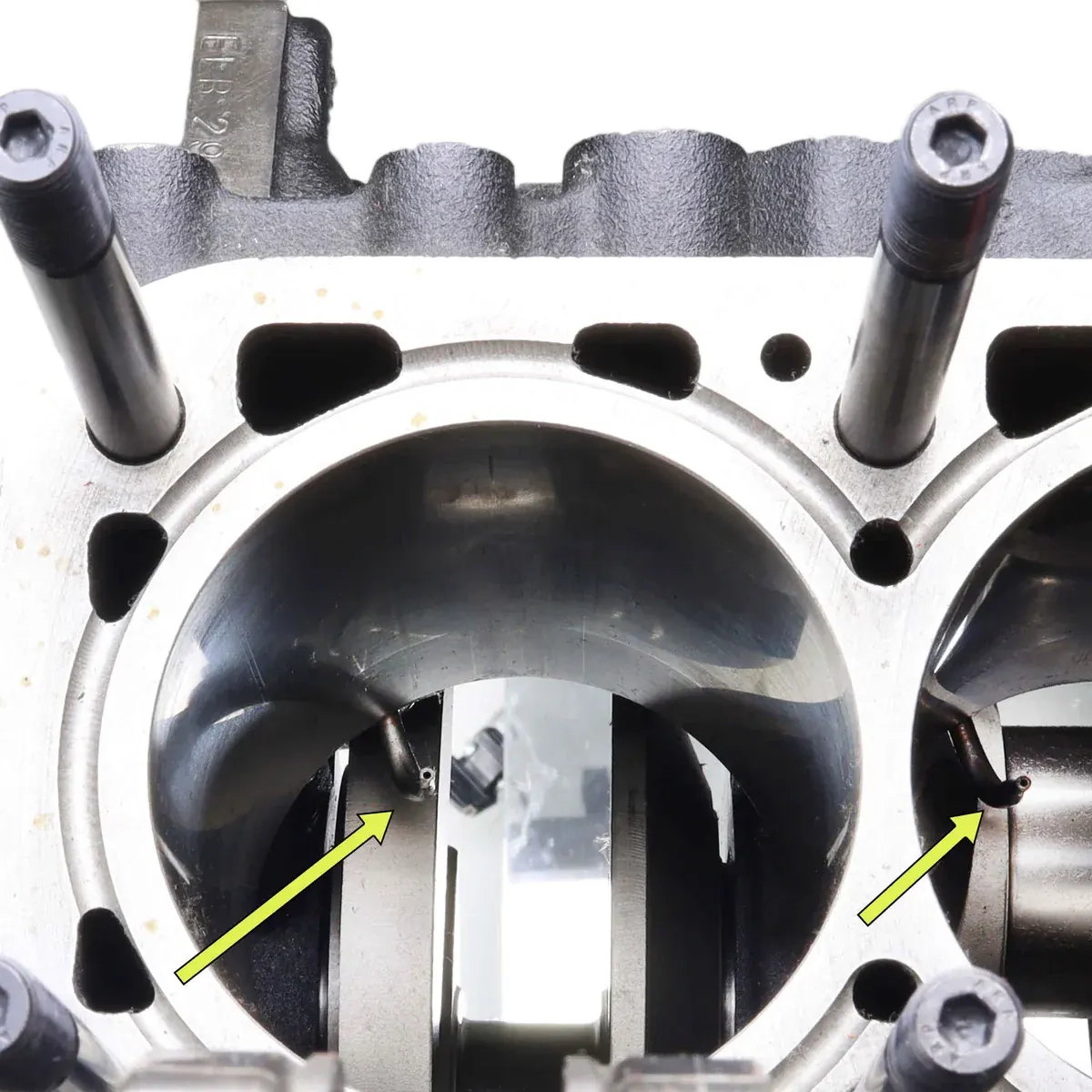

4 RACE oil cooling nozzles with special pressure valve for better piston cooling for all 2.0L TFSI engines with JE Pistons.

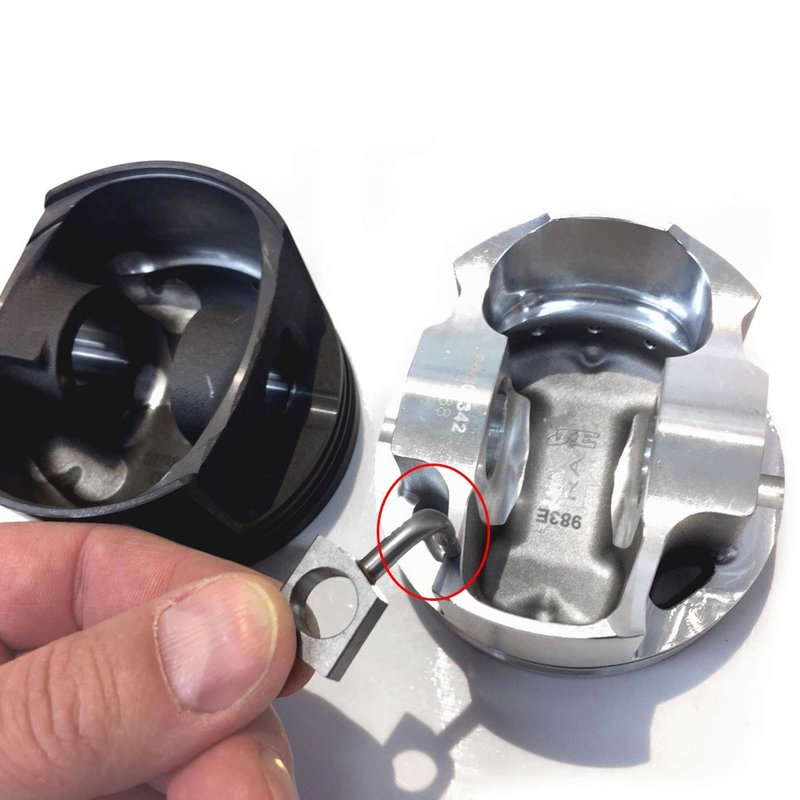

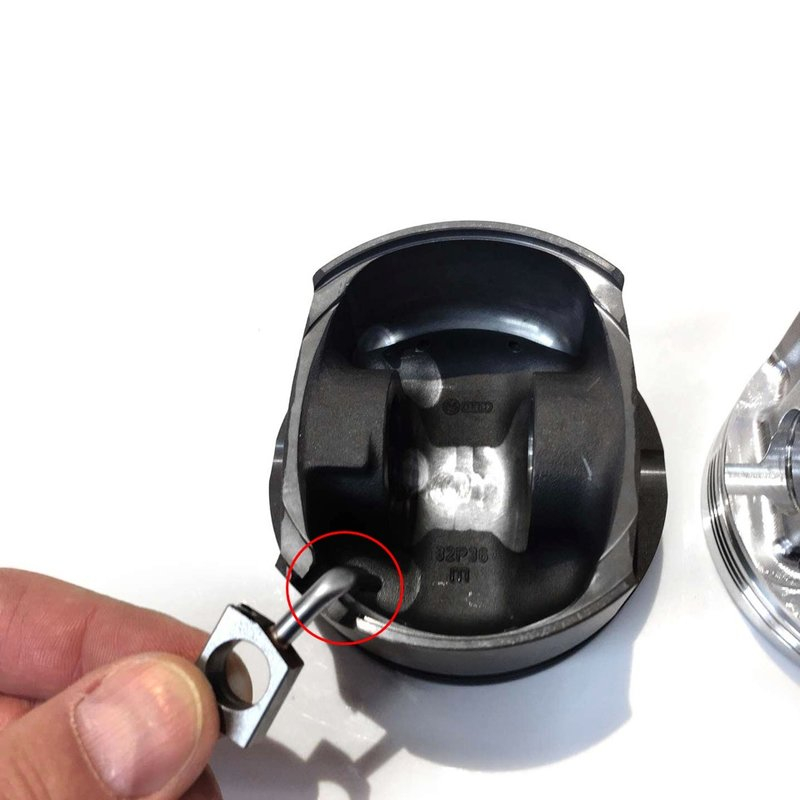

This oil cooling nozzles are specially fits for JE Pistons which are characterized in the model with a Q. The oem oil cooling nozzles are not fit for this pistons. Look the extra picture with example JE (Q) piston & Mahle piston!

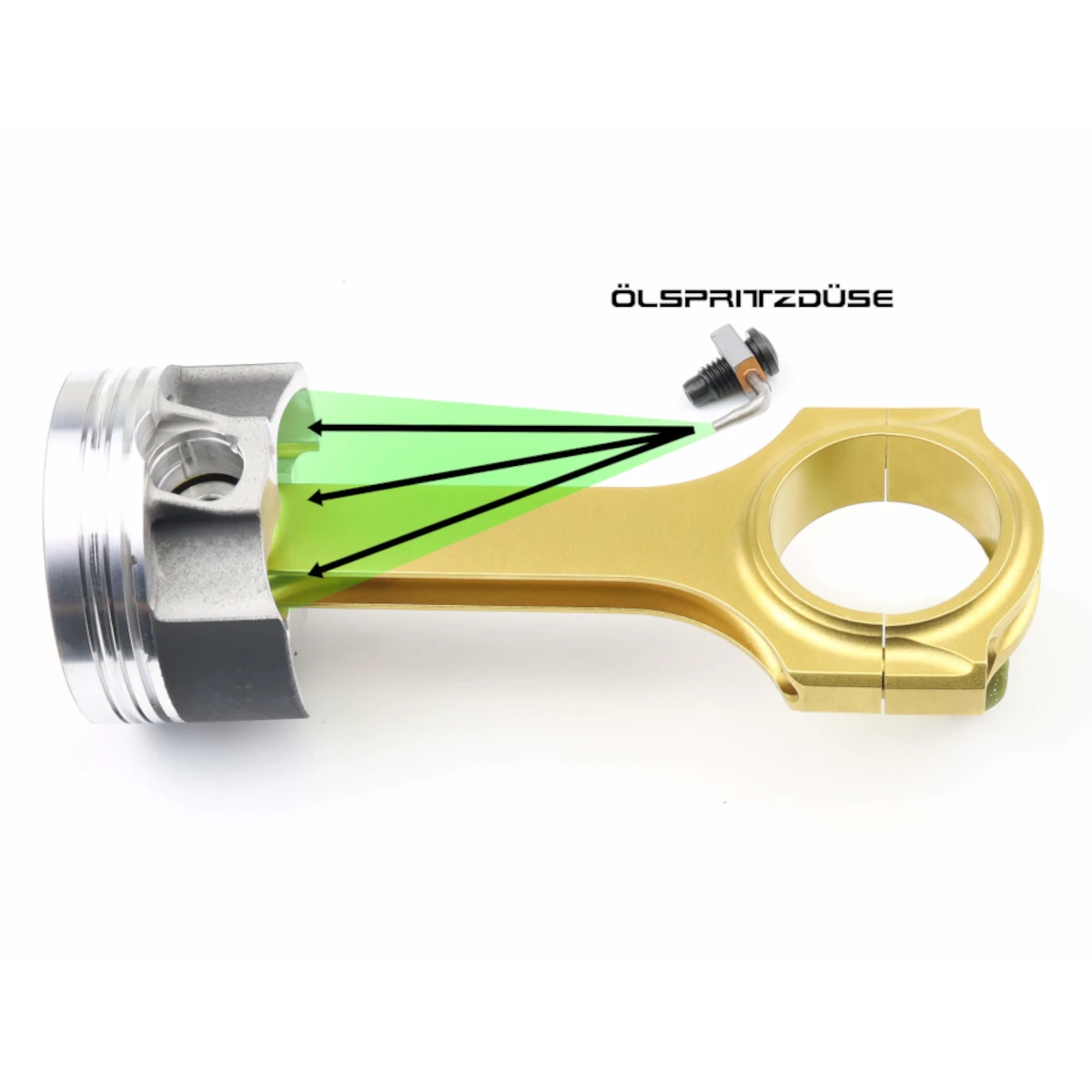

Due to the cooling of the bottom of the piston they will lower the combustion temperature. This has the effect, that the knocking point from the engine goes down and because of the lower combustion temperatures the HP will increase as well.

Easy installation.

For our RACE oil cooling nozzles for all other pistons check the accessories below!

Why oil spray nozzles are so important in upgraded engines:

Do you have questions about the product? Just start the chat, we will help you with your product selection.

Questions & Answers

Fits for

Fits for

A1 / S1 | 8X | Year built 2010-2018 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	CDLH \| 256 hp (188 kW)

A3 / S3 / RS3 | 8P, 8PA | Year built 2003-2013 5 Engines

Engine	Engine code
2.0 TFSI (EA113)	AXX \| 200 hp (147 kW)
2.0 TFSI (EA113)	BHZ \| 265 hp (195 kW)
2.0 TFSI (EA113)	BPY \| 200 hp (147 kW)
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	CDLA \| 265 hp (195 kW)

A4 / S4 / RS4 | B7 (Type 8E) | Year built 2004-2008 4 Engines

Engine	Engine code
2.0 TFSI (EA113)	BGB \| 200 hp (147 kW)
2.0 TFSI (EA113)	BPG \| 200 hp (147 kW)
2.0 TFSI (EA113)	BUL \| 220 hp (162 kW)
2.0 TFSI (EA113)	BWE \| 200 hp (147 kW)

A6 / S6 / RS6 | C6 | Year built 2004-2011 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	BPJ \| 170 hp (125 kW)

TT / TTS / TT RS | 8J | Year built 2006-2014 3 Engines

Engine	Engine code
2.0 TFSI (EA113)	BPY \| 200 hp (147 kW)
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	CDLB \| 272 hp (200 kW)

Alhambra | I (Type 7M8) | Year built 1995-2010 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	ADY \| 115 hp (85 kW)

Alhambra | I (Type 7M9) | Year built 2000-2010 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	ATM \| 115 hp (85 kW)

Altea | I | Year built 2004-2015 0 Engines

Engine	Engine code

Exeo | I (Type 3R) | Year built 2008-2013 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWE \| 200 hp (147 kW)

Leon | II (Type 1P) | Year built 2005-2012 8 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 185 hp (136 kW)
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	BWJ \| 240 hp (177 kW)
2.0 TFSI (EA113)	BWJ \| 286 hp (210 kW)
2.0 TFSI (EA113)	BWJ \| 310 hp (228 kW)
2.0 TFSI (EA113)	CDLA \| 265 hp (195 kW)
2.0 TFSI (EA113)	CDLA \| 310 hp (228 kW)
2.0 TFSI (EA113)	CDLD \| 240 hp (177 kW)

Toledo | III (Type 5P) | Year built 2004-2009 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)

Eos | I (Type 1F) | Year built 2006-2015 1 Engines

Engine	Engine code
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)

Golf | V (Type 1K) | Year built 2003-2008 5 Engines

Engine	Engine code
2.0 TFSI (EA113)	AXX \| 200 hp (147 kW)
2.0 TFSI (EA113)	BPY \| 200 hp (147 kW)
2.0 TFSI (EA113)	BWA \| 200 hp (147 kW)
2.0 TFSI (EA113)	BYD \| 230 hp (169 kW)
2.0 TFSI (EA113)	CDL \| 240 hp (177 kW)
